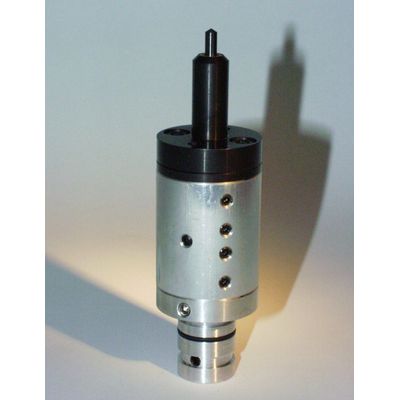

Lintech - Model WE 1 PIN - Needle Systems
Function: The tip of the pin is activated by compressed air to oscillate individually. The oscillation frequency is approximately 150 Hz as soon as the compressed air passes through.
Most popular related searches
Pin system for deep embossing
Recommended operating conditions:
- 4-6 bar operating working pressure with filtered and lightly oiled air.
- Connecting threading M16x1.5.
- Cylinder diameter 12 mm.
- Maximum stroke height 4 mm.
- Pin diameter 4 mm.
- Pin angle 60°, 90° or 120°
