Mitaka -Model MM90 / MM80 -Neuro Supermicroscope
Surgical neuroscope with essential parameters supercharged to microneurovascular surgery needs. Microscope essentials supercharged. Image quality and precise handling are the most important features of any surgical microscope. Years of experience have enabled Mitaka engineers to achieve perfection in both.

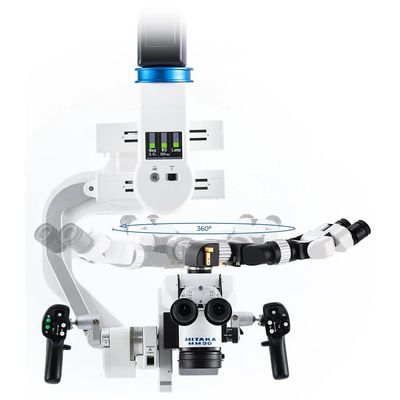

360° binocular
The unique rotating binocular has the ability to change the side assistant`s position without detachment. It is fully automatically balanced by the SOH stand.
Auto Balance
Resolution is the measure of optical quality. It is expressed in line pairs per millimetre (LP/mm). The MM51 allows you to distinguish 118 LP/mm (at 8x magnification and WD300 mm with CL3 lens) – more than twice the resolution of any standard microscope.
Wide-range multi-focus
The neuroscope is equipped with a unique apochromatic optical unit and an electric stepless 8:1 zoom. The wide-range multi-focus is capable of capturing a vivid image at each working distance.
Native magnification
The reference optics in the Mitaka MM90/MM80 surpass standard microscopes thanks to its native 21.6x magnification, achieved without the need for extending accessories.
Laser focus guide
A laser guide beam indicates the focus position when moving the microscope. The indicator allows a quick and accurate focus adjustment.
The reference quality of Mitaka precision mechanics - derived from the space industry - creates the "zero-weight" feeling while working with a Mitaka supermicroscope. The Overhead YOH and SOH stands have the shock-absorbing system installed, which eliminates vibrations caused by external forces as well as those generated while manoeuvring. All movements are counter-balanced by the balance mechanics, including starting and braking, and are thus extremely smooth and accurate.
Full integration
Perfect synergy between man and machine makes it possible to work smoothly and quickly. Accuracy, quality and stability are second to none. Just as the surgeon demands.
Smart and compact
In the limited space of an operating field, where many devices may be concentrated, the small size of the MM90/MM80 body gives plenty of room to create a workspace in the surgical field. Reference optics provides a large range of working distance from 200 to 600 mm - comfortable and safe.
