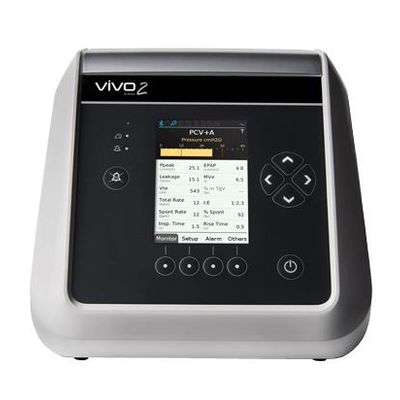

Vivo - Model 2 - New Generation Ventilator

SHARE

The Vivo 2 is a new generation ventilator designed for personalized and comfortable non-invasive respiratory support for non-dependent patients with chronic breathing insufficiency. The intuitive interface ensures ease of use. A comprehensive set of modes and extensive monitoring capabilities allow for great flexibility, making the ventilator a perfect choice for a variety of patients.

Most popular related searches
breath rate
nurse calling
patient circuit
respiratory support
remote monitoring software
patient breathing
pediatry
heated humidifier

COMPACT

  • One Platform-Three Models
  • Lightweight and Compact
  • Integrated Humidifier with heated wire circuit

ADAPTABLE

  • Wide range of Modes
  • Adult and paediatric (>10kg)
  • Intuitive Interface
  • Extensive therapy data
  • Suitable for use in hospital and home
  • Closer monitoring with Breas accessory box

CONNECTED
Making Connected Care more Insightful

  • EveryWare – Secure cloud-based remote monitoring*
  • PC Software – Desktop-based with Live Viewer

Settings / Performance

  • Ventilation Modes : S, ST, T, PSV, PCV+A , CPAP
  • Adult/Peadiatric : >10kg
  • IPAP : 4 – 30 cmH2O
  • EPAP : 2 – 20 cm H2O
  • Breath Rate/Back-up Rate : 0-40 bpm
  • Inspiratory Time : 0.3 – 3 s
  • Rise Time : 1 – 9
  • Inspiratory Trigger : 1 – 9
  • Expiratory Trigger : 1 – 9
  • Minimum Inspiratory Time : Off, 0.3 – 3 s
  • Maximum Inspiratory Time : Off 0.3 – 3 s
  • Target Volume : 100 – 1500 ml
  • Target Volume : 100 – 1500 ml
  • Auto-EPAP : On/Off, Pressure Limit: Max EPAP +2 cmH2O – 30 cmH2O, PS 2-28cm Min/Max EPAP: 2 – 20 cmH2O, EPAP Step: 0.5 – 2 cmH2O, Relax Time: 2-12mins/Off
  • Ramp (Up/Down) : Off 10-60mins
  • Humidifier Level : 1-5
  • Heated Circuit : Off, 1-5
  • Patient Circuit : 15mm, 22mm
  • O2 Bleed in (Device) : 0-30L/min

Monitoring

  • Displayed data : Ppeak, EPAP, Leakage, MV, Vte % in TgV, Total Rate I:E, Spont Rate, % spont, Inspiratory time, Rise time, SpO2, Pulse, Rate

Power Supplies

  • Mains supply : 100 to 240 V AC
  • External DC : 24 V

Alarms

  • Alarms : High Pressure, Low Pressure, High Breath Rate, Low Breath Rate High MV, Low MV, Rebreathing Apnea, Disconnection, High SpO2, Low SpO2, High Pulse Rate, Low Pulse Rate, Power failure

Dimensions

  • W x H x D : 166 x 185 x 200 mm
  • Weight : 1.6kg
  • Noise level (at 10 cmH2O constant pressure) : Less than 28 dB(A)

Connectivity and Software

  • Built-in connectivity : USB
  • Compatible Software : PC Software and is prepared for EveryWare Remote Monitoring*
  • Plug-and-Play accessories : SpO2, Nurse Call, Remote Alarm, Accessories Box

Other

  • Humidification : Integrable water chamber
  • Circuits : Cleanable & Disposable leakage circuits with/without heated wires
  • Confirm Stop :  On, Off
  • Compliance Data (on Screen) :  Min Daily Usage Off, 1-24hrs, Total Usage Hours, Total Days, Days with Usage, Average Usage, Days Compliant, AHI
