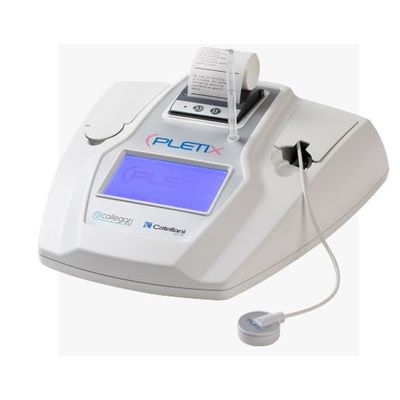

Callegari - Model Pletix - Non-Invasive Instrument for the Screening of CVI

• Pletix is an instrument which detects circulatory vein conditions
• CVI (Chronic Vein Insufficiency)
• It is designed to screen for vein health and provide timely advise to patients.

WHAT DOES IT MEASURE

• Pletix is a non-invasive instrument, which measures the refilling time (RT). This refers to the time that the blood takes to return to the calf after forced movement of leg(example tapping of the foot).

PLETIX, ESSENTIAL SUPPORT IN THE PREVENTION AND MANAGEMENT OF VEIN ISSUES

• Identify and manage circulatory problems of the leg
• Enhance health care sites by providing consumers with appropriate and timely screening service
• Approximately 70% of the population suffers from circulatory problems. Major risk factors include diabetes, hormonal imbalance, being over-weight, sedentary lifestyles, use of the contraceptive pill and tight clothing.

USER-FRIENDLY AND RAPID TO USE

• Operators are guided by on-screen instructions
• Non-invasive test, touch screen procedure
• Results are supported by product advice
• Readings performed in minutes and printed
• Pletix employs technology which is scientifically recognised and validated. The instrument is CE marked according to the 93/42 EC and including amendments.

USER OF THE PLETIX, SOME EXAMPLES

• Health Clinics
• Pharmacies
• Hospitals
• Leg Health Specialist Companies
• Doctor’s Office
• Cardiovascular Health

• Measurement principle: Absorbance/Reflection
• Probe Dimensions: 35 (Ø) x 15 (H) mm
• Light Source: LED, Light Emitting Diode
• Wavelength (λ): 940nm
• Display: Backlit graphic LCD 128x240 pixels (with resistive touch screen)
• Test: Venous Reflux
• Accuracy: +/-2 sec
• Interface: USB – Device
• Printer: Thermal-Graphic
• Weight: ca. 3 Kg
• Dimensions: 329 (W) x 310 (L) x 90 (H) mm
• Instrument power supply: Specific external power supply 12 VDC 1.2A (Plug 2.5mm-5mm)
• Energy absorption: max. 15 Watts
• Environmental Conditions:
• of work: 15°÷35°C  -  (Rh 95% max)
• of transport and storage: -5÷60°C  -  (Rh 95% max)
• Certifications: Marking CE0068
