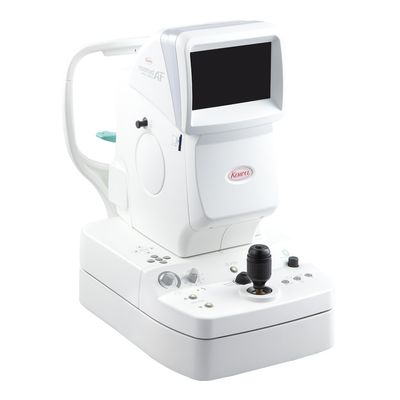

Kowa Nonmyd -Model AF -Non-Mydriatic Retinal Camera
Standalone: Data can be saved on an SD card. A numeric keypad or bar code reader may be used for ID input. Connection to other systems: Images can be exported to any folder. An export tool (included) enables automatic ransfer of images to other systems. Connection to KOWA VK-2s Image Filing System: The user can save and/ or view images using the optional image filing system software. The KOWA VK-2s also has an image exporting function which allows output to a designated folder on the network. Options: Image Filing System "KOWA VK-2s"; External fixation target.
Angle of View: 45° /2× (horizontal 26.6°/ vertical 22.2°) 2 modes (optical zoom)
Working distance: 30 mm
Minimum Pupil diameter: ⌀4.0mm (small pupil mode ⌀3.3mm)
Compensation Range of Examined Eye: Without Compensation: -12D to +13D; Compensation: - 32D to +10D; Compensation: +10D to +35D
Automatic functions: Focusing, Flash Intensity*, Photographing (ON/OFF Selectable), Switching between anterior and fundus modes
Camera: 2448×2048 pixel CMOS sensor camera
Monitor: 7 Inch Wide Monitor
Light source: Obsercation: Near-infrared LED; Photography: Xenon flash lamp
Internal Fixation Target: Normal: 3 positions (Central, Disc, Macula), Mosaic 9 positions
Optical Component Adjustment Range: Forward/Backward: 60mm; Left/Right: 98mm; Vertically (Electric): 27mm
Interfaces: Image output: USB (Type B); Numeric keypad/ Barcode reader input: USB (Type A)
Storage media: SD card (～2GB), SDHC card (4GB ～ 32GB) SDXC not supported
Power Supply: Input: AC100-240V, 50/60Hz; Power consumption:150VA
Dimensions: 310(W) x 530(D) x 555(H)mm
Weight: 23kg
