Medindustria Service Ltd.

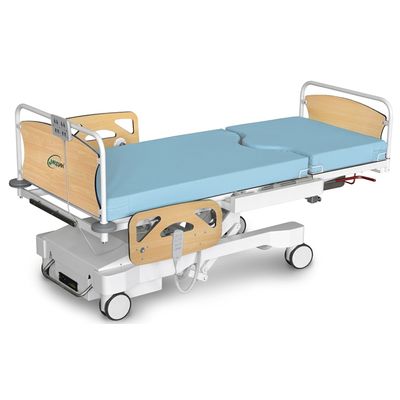

Model KA - Obstetric Bed
Obstetric bed is optimally suited for positioning women in labor in the required position at all stages of pregnancy, during childbirth, and the postnatal period. The well-thought-out design allows quick and smooth repositioning of the components of the bed using additional accessories that meet specific requirements at all stages of observation and intervention. It provides optimal working conditions for medical personnel, as well as allows to perform non-abdominal obstetric operations.
Most popular related searches
leg section
leg support
medical staff
obstetric
patient positioning
infusion stands
infusion stand
obstetrician gynecology
patient transport
pregnancy childbirth
- Provides high level of comfort for women in labor
- A wide range of positions for the natural childbirth
- Ergonomic design for convenient access of the medical personnel to the patient in any position
- Modern materials that withstand repeated sanitization
- Electrical adjustments with the help of the remote control: bed lifting and lowering, longitudinal and back section tilts, as well as leg section height
- Bed lowering for extra comfortable patient positioning
- Leg section adjusted in height and angle
- Convenient patient transportation inside the hospital
Models:
- KA-01 – electric drive (4 motions) and leg section tilt adjusted by gas spring (305.201)
- KA-02 – electric drive (3 motions) (305.202)
- KA-03 – electric drive (2 motions) and bed longitudinal tilt adjusted by gas spring (305.203)
- KA-04 – height adjusted by the hydraulic jack, longitudinal and back tilts adjusted by gas spring (305.204)
Additional accessories (supplied in separate order):
Delivery set:
- Remote control – 2 pcs.
- Power cord – 1 pc.
- Side railings down motion – 2 pcs.
- End railings – 2 pcs.
- Leg supports – 2 pcs.
- Feet rests – 2 pcs.
- Handles – 2 pcs.
- Withdrawable container – 1 pc.
- Table for a newborn – 1 pc.
- Trolley for accessories – 1 pc.
- Grounding plug – 1 pc.
Additional accessories:
- Injection plate
- Screen table
- Basket for magazines
- Foot-operated control
- Overhead loop
- Infusion stand
Warranty 24 months
- Safe working load, not less than: 230 kg
- Max. load on leg sections, not less than: 150 kg
- Quantity of electric drives: 4
- Min. height (without mattress), not more than: 580 mm
- Max. height (without mattress): 955 mm
- Back section tilt, not less than: 78°
- Longitudinal tilts, not less than: 15°
- Leg section lowering, not less than: 250 mm
- Leg section tilt, not less than: 16°
- Leg support rotation angle relating to Z axis: 360°
- Leg support tilt angle: 30º
- Handle tilt angle: 45º
- “Bed” mattress dimensions: 1900?780?100 mm
- “Chair” mattress dimensions: 1300?780?100 mm
- Bed (chair) dimensions: 2050(1520)?970 mm
- Power supply voltage: 230 ?, 50 Hz
- Built-in batteries capacity: 10 A/h
- Batteries charging time: 5-6 h
- Power consumption, not more than: 250 W
- Bed weight, not more than: 200 kg
