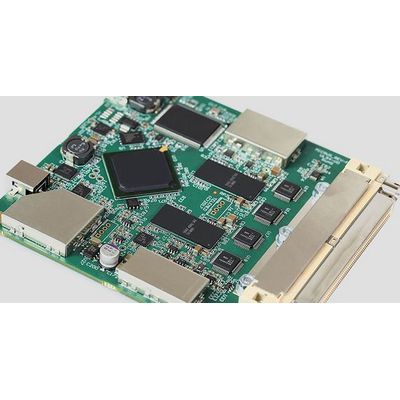

MicrUs - OEM Beamformers

The beamformer has the following functions:

• forms short delayed impulses of high voltage to get a focused ultrasound beam;
• amplifies echo - signals deflected by an object being tested;
• focus while receiving;
• multifocus support;
• preamplifying, amplifying and filtration of echo-signals;
• detection of connected ultrasound transducer and passing its code to system;
• transferring ultrasound data to personal computer.

Imaging modes

• B-mode
• B-steer
• Trapezoid
• Spatial Compound
• B+B
• 4B
• B+M
• M

Transducers

• linear, convex, microconvex
• 280-pin transducer connector
• multifrequency transducers support (2.0 - 15.0 MHz)

Control interface

• USB 3.0 / USB 2.0

Power

• powered from USB 3.0
• external +12V (1A) required if connected to USB 2.0

Computer Requirements

• Windows based PC
• screen resolution 1024x768 or more, IPS technology, touch screen support (option)
• CPU i3/i5/i7 1.8 GHz or faster
• 2 Gb of RAM or more
• USB 3.0 / USB 2.0 interface
• Windows 7 / 8 / 10 (all versions 32/64-bit)
