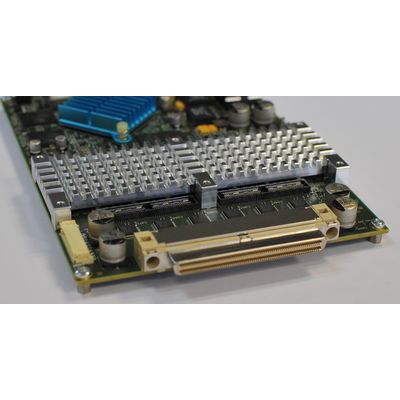

ArtUs -OEM Beamformers

The beamformer has the following functions:

• forms short delayed impulses of high voltage to get a focused ultrasound beam;
• amplifies echo - signals deflected by an object being tested;
• focus while receiving;
• multifocus support;
• preamplifying, amplifying and filtration of echo-signals;
• detection of connected ultrasound transducer and passing its code to system;
• transferring ultrasound data to personal computer.

Imaging modes

• B-mode
• Tissue Harmonic Imaging with Pulse Inversion technology (iTHI)
• Parallel Beamforming
• B-steer
• Spatial Compound for linear and convex probe
• Virtual Convex for linear probes
• Expanded View Angle for convex probes
• B+B
• 4B
• B+M
• M
• CFM - Color Flow Mapping
• PDI - Power Doppler
• DPDI - Directional Power Doppler
• PWD - Pulsed Wave Doppler
• B+PWD (Duplex)
• B+CFM/PDI/DPDI+PWD (Triplex)
• RF data access through SDK (option)

Transducers

• linear, convex, microconvex, phased array
• H-280 type transducer connector
• can recognize unlimited number of transducers
• multifrequency transducers support (1.5 MHz t18.0 MHz)
• number of probe connection ports: 1

Control interface

• USB 3.0

Power

• +12V +/- 5%, 2.5A

Computer Requirements

• Windows based PC
• screen resolution 1024x768 or more, IPS tecnology, touch screen support (option)
• CPU i3/i5/i7 1.8 GHz or faster
• 2 Gb of RAM or more
• USB 3.0 interface
• Windows 7 / 8 / 10 (all versions 32/64-bit)
