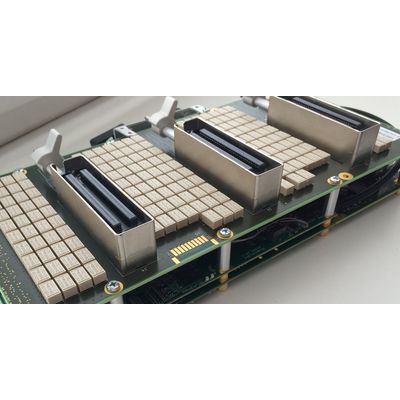

Smartus - OEM Beamformers

The beamformer has the following functions:

• forms short delayed impulses of high voltage to get a focused ultrasound beam;
• amplifies echo - signals deflected by an object being tested;
• focus while receiving;
• multifocus support;
• preamplifying, amplifying and filtration of echo-signals;
• detection of connected ultrasound transducer and passing its code to system;
• transferring ultrasound data to personal computer.

Imaging modes

• B-mode
• B-steer
• Trapezoid - Virtual Convex
• Spatial Compound
• Tissue Harmonic Imaging with Pulse Inversion technology (iTHI)
• B+B
• 4B
• B+M
• M
• CFM - Color Flow Mapping
• PDI - Power Doppler
• DPDI - Directional Power Doppler
• PWD - Pulsed Wave Doppler
• CWD - Continuous Wave Doppler
• B+PWD/CWD(Duplex)
• B+CFM/PDI/DPDI+PWD/CW (Triplex)
• High Pulse Repetition Frequency (HPRF)

Transducers

• linear, convex, microconvex, phased array
• tZIF-260 type transducer connector, QLC type
• multifrequency transducers support (1.5 -18.0 Mhz)
• can recognize unlimited number of transducers

Control interface

• USB 2.0 - USB 3.0

Power

• +12V +/- 5%, 2.5A

Computer Requirements

• Windows based PC
• screen resolution 1024x768 or more, IPS technology, touch screen support (option)
• CPU i3/i5/i7 1.8 GHz or faster
• 2 Gb of RAM or more
• USB 2.0 / USB 3.0 interface
• Windows 7 / 8 / 10 (all versions 32/64-bit)
