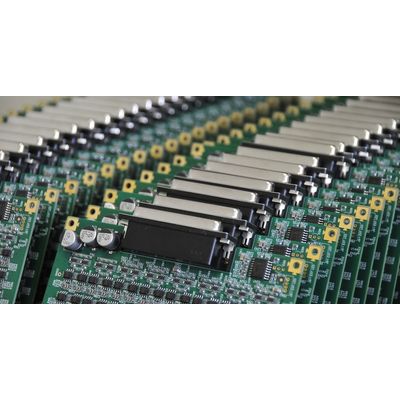

ClarUs - OEM Beamformers

The beamformer has the following functions:

• forms short delayed impulses of high voltage to get a focused ultrasound beam;
• amplifies echo - signals deflected by an object being tested;
• focus while receiving;
• multifocus support;
• preamplifying, amplifying and filtration of echo-signals;
• detection of connected ultrasound transducer and passing its code to system;
• transferring ultrasound data to personal computer.

Imaging modes

• B-mode
• B-steer
• Compound + Trapezoid
• Tissue Harmonic Imaging (THI), works with 3.5 MHz central frequency transducers
• B+B
• 4B
• B+M
• M
• Color Doppler (CFM)
• Power Doppler (PDI)
• Directional Power Doppler (DPDI)
• Pulsed Wave Doppler (PWD)
• B+PWD (Duplex)
• B+CFM/PDI/DPDI+PWD (Triplex)
• High Pulse Repetition Frequency (HPRF)

Transducers

• linear, convex, microconvex
• tZIF-260 type transducer connector, QLC type
• multifrequency transducers support (2.0-14.0 Mhz)
• can recognize unlimited number of transducers

Control interface

• USB 2.0 - USB 3.0

Power

• +12V +/- 5%, 1.5A

Computer Requirements

• Windows based PC
• screen resolution 1024x768 or more, IPS or PLS technology, touch screen support (option)
• CPU i3/i5/i7 1.8 GHz or faster
• 2 Gb of RAM or more
• USB 2.0 / USB 3.0 interface
• Windows 7 / 8 / 10 (all versions 32/64-bit)
