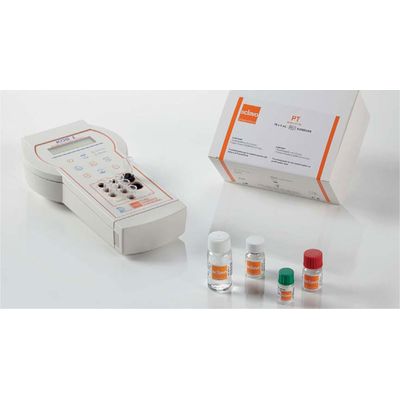

Model KOS 1 - One Channel Coagulation System

Reagent Kits
PT
APTT
TT
Fibrinogen
D-Dimer
Protein C
AT III
Factors

Calibrators
Calibration Plasma
%PT/DIRECT INR

Control Plasma
Normal Control Plasma
Abnormal Control Plasma
D-Dimer Control - Low
D-Dimer Control - High

Technical Features
1 channel fully optical measurement
Sunlight reduction
Clotting, chromogenic or immuno-turbidimetric assays
Quantitative D-Dimer
Micro volumes (total 75 μl)
Small dimension and weight
Highly reliable & long-living
Autosense optics to eliminate interferences like Bilirubin,
Haemoglobin, sunlight
Approved clotting algorithm with biphasic waveform analysis
Automatic start at reagent addition
3 points calibration curve for each test
1 stop-watch function on-board
Double determination
Optional external thermal printer
RS 232 Interface
Linking to Laboratory Information System (L.I.S.)

Dimensions
L x W x H: 205 x 150 x 75 mm
Weight: 0,72 Kg

Power Supply (External)
Input: 100-240 V~, 50/60 Hz
Power: 12 V
Approvals: CE, EN60950, UL

Incubation Block
Temperature: 37,0 °C ±0,2 °C
Samples: 6 cuvettes
Reagent: 2 vial Ø 11,0 mm
Different adapters available

Measurement
Optic: 1 channel with AutoSense
Methods: Turbidity, Kintetic, Endpoint
Algorithm: based on optical density
Processing: 14 Bit ADC + Digital Filter
Autosense: LED intensity controlling
Starting: Manual/Optical
