Telemed -Model MicrUs PRO -Open-Architecture B/W Ultrasound Diagnostic System
FromTelemed, UAB

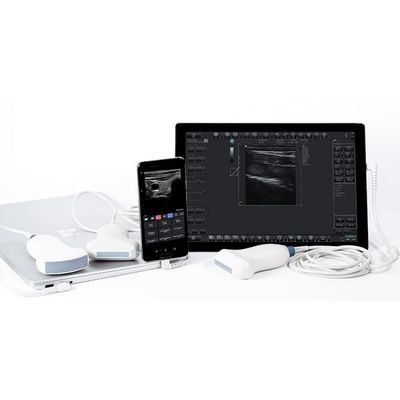

The MicrUs technology is integrated within the USB Probe which can be used on PC, tablet, and smartphone (Windows / Android).
Most popular related searches
ultrasound diagnostic system
patient data
ultrasound system
obstetrician gynecology
urology vascular
diagnostic imaging
ultrasound diagnostic
abdominal gynecology
patient diagnostic
general gynecology
All in one
For PC, tablet and smartphone, the MicrUs Pro exploits the latest innovations developed by Telemed: Full digital beamformer, Advanced Speckle Reduction, Spatial Compound, WideView Imaging, Raw Data, etc…
Telemedicine applications allow remote control of the system for consultation, application training and technical support, including free software updates. Software Development Kit (SDK) for Windows and Android can be provided on request for industry,
developers or research teams.
The MicrUs Pro is available in three versions:
- MicrUs Pro-L40S Linear probe, 5-12 MHz, 40 mm
- MicrUs Pro-L40N Linear probe, 5-12 MHz, 40 mm, high crystal density
- MicrUs Pro-C60S Convex probe 2-5 MHz, R60 mm
Scanning methods
- linear
- convex
- scanning depth: 2 – 31 cm
Imaging modes
- B, B+B, 4B, B+M, M
- Spatial Compound
- WideView Imaging
- B-steer Imaging
- PanoView - Panoramic Imaging (option)
- 3DView – Rendering 3D (option)
Transducers
- Frequency range: 2.0 - 12.0 MHz
- multifrequency
- automatic transducer recognition
Image processing
- High Line Density scan mode for better resolution
- TGC Control, 5-10 sliders (customizable) 40 dB
- dynamic range: 120 dB, 8 values
- overall gain control
- M - mode sweep speed control
- acoustic power control
- variable frame averaging
- brightness, contrast controls
- advanced gamma control: 8 fixed curves, 8 user defined (custom)
- scan direction, rotation, up-down controls
- negative / positive control
- bi-linear interpolation
- echo enhancement control
- noise rejection function
- Advanced Speckle Reduction Imaging and structure improvement
Focusing
- digital transmit focusing: variable, 8 zones
- digital receive focusing: point to point, dynamic
Ultrasound imaging
- ultrasound image size: automatically adjustable to screen resolution
- gray scale: 256
- color scale: 256
- full motion and full size real-time ultrasound imaging, up to 120 fps (depending on selected
- scan depth, scan angle, focus mode, High Line Density setting, computer speed)
- cineloop recording/play: several thousands frames (depends on computer memory size and
- scan mode)
- zoom mode: from 60% to 600% in all modes (Scan, Freeze, B, B+B, 4B, M-zoom, cineloop,
- etc)
- viewing area variable for frame rate maximizing: 6 steps
- thumbnail mode: up to 32 images
- “Freeze” mode
- “Auto Freeze” mode
Functions
- mouse / trackball / keyboard /touch screen operation
- unlimited programmable presets for clinically specific imaging
- body marks, anatomical icons with transducer position indicator
- annotations and drawings
- echo-guided biopsy trace and target settings, calibration
- patient reporting and archiving:
- Creation of patient folder for archiving patient data, reports, images/video
- Customization of report: templates, report layout (patient data, diagnostic images,
- measurements and calculations, curves and diagrams, comments, etc.)
- direct e-mail sending with image / video / report attachment via Internet
- DICOM file push to server
- printing to PC printer or thermal printer
- multi-monitor support
- full screen and window mode
- ultrasound scanner monitor and system information
- Telemedicine functions with remote control of the system, for diagnostic consultation,
- application training and technical support
- Freeware software upgrades
User interface customization
- set of predefined skin schemes for software interface
- set of predefined buttons images
- classic ultrasound interface
- full screen and window mode
- multilanguage support
- ultrasound area size
- font size
- B+M layout position, size
Image and video save/load format
- AVI
- JPG
- BMP
- PNG
- TIF
- XLSX
- DCM (DICOM uncompressed)
- DCM (DICOM-JPEG RGB/YBR)
- DCM (DICOM-JPEG RGB/YBR Video)
- TPD (Telemed Picture Data) - Raw Data
- TVD (Telemed Video Data) - Raw Data
- Raw Data formats TPD and TVD allow post-processing functions on saved images/video
- (measurements, calculations, zoom, speckle reduction, gamma, palette, reporting etc.)
DICOM
- Verification SCU
- Modality Worklist (MWL) SCU
- Modality Performed Procedure Step (MPPS) SCU
- Store SCU (images, video)
- Print SCU (grayscale, color)
Measurements and calculations
- Measurements and calculations: general, abdominal, obstetrics, gynecology, urology, vascular, endocrinology, musculoskeletal.
- Power supply
- Powered by USB-C
- Weight
- MicrUs Pro
- weight, kg: 0.2
Ultrasound software
- TELEMED Drivers Package (32/64-bit Windows)
- Echo Wave II software / Echo Wave II Touch (32/64-bit Windows)
- Echo Wave A (android version – MicrUs / MicrUs Pro only)
- 3DView plug-in (option)
- PanoView plug-in (option)
- SDK documentation / sample code (available by agreement)
- Freeware software upgrades
Recommended system requirements
- Windows® based PC / Smartphone / Tablet
- USB-C interface
- Windows 7, Windows 8, Windows 10 (all versions 32/64-bit) / Android
Customer care and technical support
- Real-time Customer support with remote control via the Internet.
- Freeware software upgrades.
- MicrUs Pro kit includes:
- MicrUs Pro USB probe
- USB-C cable
- Software, assembly, set-up manual, operation manual (USB pen drive)
