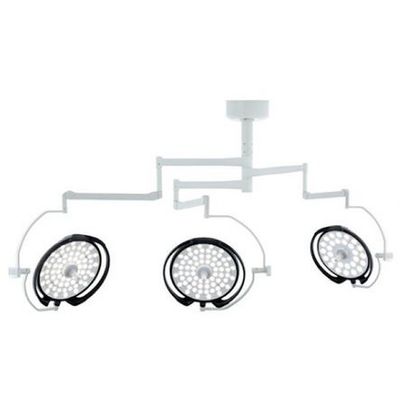

UZUMCU -Model DL-662D -Operating Room Ceiling Lamp Led
The DL-662D can respond to all lighting levels needed in the operating room with 2 large and 1 satellite head, and thanks to its LED technology, it does not cause temperature increase in both the surgical area and the surgeon`s head.
Thanks to its 3 lighting heads, it meets all needs even in complicated operations.
The lamp light level can be adjusted between 1-100 on the control panel and helps the user to set the light level desired by the user.
All functions are easily accessible thanks to the LCD touch screen.
The handpiece located within the sterile field allows focus adjustment by the surgeon.
Thanks to the sensors in the lamp heads, the surgeon closes the relevant slice when it detects the head, and thanks to this feature, heat increase in the surgeon`s head and shadow formation in the operation area are prevented.
The bulbs have a lifespan of 50,000 hours, reducing service time and cost.
- Max. Luminous power at 1 m (Main heading) : 160,000 lux
- Max. Luminous power at 1 m (Satellite head) : 120,000 lux
- Main head diameter : Ø650mm
- Satellite head diameter : Ø440mm
- Number of titles : 3
- Control panel (for each title) : 4.3`` LCD touch panel
- Main title focus diameter : 120 - 300mm
- Satellite head focus diameter : 150mm
- Color temperature : 3500k - 5000k (7 steps)
- Color discrimination index CRI RA : 96%
- Light intensity adjustment : 1-100%
- Parent topic Number of LED modules : 68
- Number of satellite header LED modules : 28
- LED lifetime : 50,000 hours
- Protection against water and dust : IP 54
- Irradiation level / Illuminance level : Ee/Ec= 3.21 mW/m2.lx
- Parent topic light depth : 120 cm
- Satellite head light depth : 100cm
- Parent topic total consumption : 85W
- Satellite head total consumption : 55W
- Endoscopy mode : There is
- Laminar flow harmony : There is
