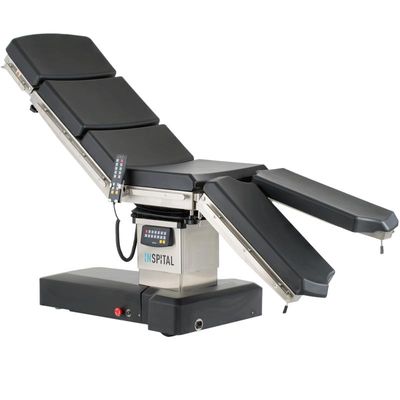

Inspital -Model OT80.20 -Operating Table
Inspital operating tables are designed to meet all special requirements of operating theaters with its powerful and stable electro-hydraulic systems. OT80.20 has wide range of accessories makes it very flexible for different surgical disciplines.
Ideal access in the surgical area
Maximum surgical area visibility with its kidney elevator, integrated on the table and adjustable up to 150° (70 mm).
Sliding feature
X-ray transparent in a wide range without disturbing the sterile environment by its longitudinal sliding table top feature of 300 mm.
Functional design
Easy to use modular design for various surgical disciplines. Durable and hygienic 316 grade stainless steel body.
Accessory attachment
Stainless steel side rails integrated on both sides of the table allow accessories to be attached without removing existing accessories.
Various mattress options
Table top made of compact material with high X-ray transparency, allowing for high quality imaging.
Visco or polyurethane mattress options that ensure patient comfort by adopting to body shape, preventing pressure sores.
Ideal access for C-arms
Full access to all table areas and radiolucent table top allows high imaging. The low table base allows easy access and approach of C-arms and surgical microscopes. Optional carbon fibre extension plate for 360° imaging available.
T-base
The T-base provides ideal access for the surgical team and OR furniture, with hidden anti-static, medical castors.
Break and corrosion resistant ABS material or optional stainless steel T-base
Ideal mattress performance
Upholstery mattresses are designed and manufactured according to the test results of Pressure Mapping Technology.
Sophisticated operating concept
Electro-hydraulic braking system via hand control. User friendly hand control with 7 adjustable functions. Preferred positions can be memorized. By using only one button OT80.20 can be setup to one of the previously stored positions. Table can be levelled (zero-position) by one button.
Additional control panel
Additional control panel on the column with complete functions, with emergency stop button.
Wide range of accessories
Wide range of accessories allows a variety of patient positioning for all surgical disciplines.
Accessory trolley for storage.
Technical Features
- Sliding movement: 300 mm
- Lateral tilt: +20° / -20°
- Back rest adjustment: +80° / -45°
- Trendelenburg: -30° / +30°
- Leg rest adjustment: +30° / -80°
- Head rest adjustment: +30° / -90°
- Flex / Reflex position: +225° / -100°
- Width x Length: 560 x 2200 mm
- Height adjustment: 595 - 1035 mm
- Mattress thickness: 70 mm
- Castors Ø: 100 mm
- Max. patient weight: 360 kg
- Kidney bridge: 150° (optional, OT80.20K)
- Stainless steel T-base: Optional, OT80.20S
- Visco mattress: Optional, OT80.20V
Adjustments
- Height: Electro-hydraulic
- Back rest: Electro-hydraulic
- Trendelenburg: Electro-hydraulic
- Lateral tilt: Electro-hydraulic
- Sliding: Electro-hydraulic
- Central locking: Electro-hydraulic
- Head rest: Manual
- Leg rest: Manual
