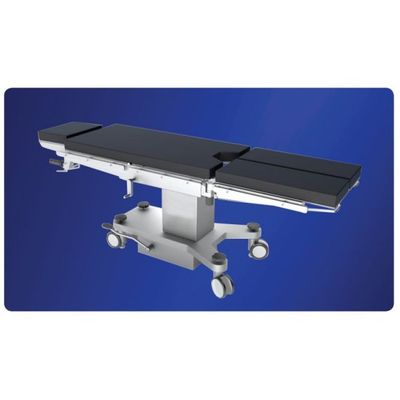

GUBBEMED - Model DARSS - Operating Table
The DARSS operating table is a manual mechanic operating table. It is suitable for the safe and comfortable positioning of the patient in all surgical disciplines, such as General Surgery, Cardio-Vascular Surgery, Gynecology and Urology, as well as Orthopedics and Neuro-Surgery, together with the corresponding accessories. All movements of the operating table and accessories are designed not only for the comfort of the patient, but also for an easy setup and stress less handling for the user.
The DARSS operating table is equipped with a high quality manual-hydraulic system – Made in Germany.
The main construction of the DARSS operating table consists of the highest quality – medical grade stainless steel.
The DARSS operating table is especially designed for all requirements in any special discipline, such as Urology and Orthopedics. A large range of operating table accessories will guarantee the best suitable setup for any patient positioning and operation. An orthopedic traction device and a 3-segment shoulder plate are also available for the DARSS operating table.
The height adjustment will be performed via a manual - hydraulic foot pump. The Trendelenburg / Reverse –Trendelenburg, the leg plates and head rest will be manually adjusted and supported by gas springs. Double-locking levers guarantee that no accidental table movements occur.
The body / kidney elevator and tilting – left / right can be adjusted via a hand crank.
The DARSS operating table is available with soft multilayer SFC anti-decubitus mattresses.
- Table Top Length 1980 - 2050mm
- Back Rest ≥570 x 510mm
- Sit Board ≥550 x 510mm
- Leg Rest ≥630 x 245mm
- Table Height 680mm ± 20mm
- Height Adjustment Range ≥250mm
- Trendelenburg and Rev. Trendelenburg ≥25°
- Lateral Tilt 20° ± 2°
- Back Rest Up ≥75° Down ≥10°
- Head Rest Up ≥40° Down ≥50°
- Leg Rest (Seperating Angle) Down ≥90° Up ≥10°
- Out ≥90°
- Kidney Elevator ≥110mm
