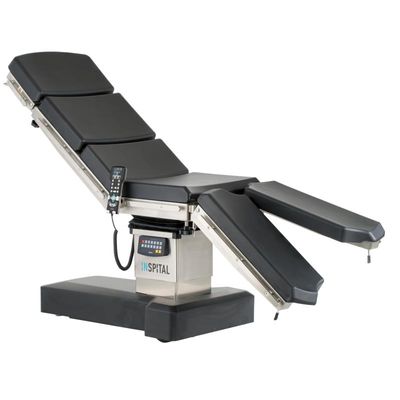

Novus -Model OT80.20 -Operating Table
Inspital operating tables are designed to meet all special requirements of operating theaters with its powerful and stable electro-hydraulic systems. OT80.20 Novus has wide range of accessories makes it very flexible for different surgical disciplines. Our experts are ready to offer you the most suitable solutions.
Hand Control Unit with Color LCD Display
-
Digital Screen
-
Battery level monitoring by remote control unit
-
Program memory for 3 positions
-
Key lock
-
Collision protection feature
Ideal access in the surgical area
Maximum surgical area visibility with its kidney elevator, integrated on the table and adjustable up to 150° (70 mm).
Sliding feature
X-ray transparent in a wide range without disturbing the sterile environment by its longitudinal sliding table top feature of 300 mm.
Functional design
Easy to use modular design for various surgical disciplines. Durable and hygienic 316 grade stainless steel body.
Accessory attachment
Stainless steel side rails integrated on both sides of the table allow accessories to be attached without removing existing accessories.
Various mattress options
Table top made of compact material with high X-ray transparency, allowing for high quality imaging.
Visco or polyurethane mattress options that ensure patient comfort by adopting to body shape, preventing pressure sores.
Ideal access for C-arms
Full access to all table areas and radiolucent table top allows high imaging. The low table base allows easy access and approach of C-arms and surgical microscopes. Optional carbon fibre extension plate for 360° imaging available.
T-base
The T-base provides ideal access for the surgical team and OR furniture, with hidden anti-static, medical castors.
Break and corrosion resistant ABS material or optional stainless steel T-base
Ideal mattress performance
Upholstery mattresses are designed and manufactured according to the test results of Pressure Mapping Technology.
Sophisticated operating concept
Electro-hydraulic braking system via hand control. User friendly hand control with 7 adjustable functions. Preferred positions can be memorized. By using only one button OT80.20 Novus can be setup to one of the previously stored positions. Table can be levelled (zero-position) by one button.
Additional control panel
Additional control panel on the column with complete functions, with emergency stop button.
Wide range of accessories
Wide range of accessories allows a variety of patient positioning for all surgical disciplines.
Accessory trolley for storage.
- Sliding Movement: 300mm
- Lateral Tilt Movement: +20 / -20
- Back Rest Movement: +80 / -45
- Tredelenburg: +30
- Reverse Tredelenburg: -30
- Leg Rest Up/Down: +30 / -80
- Head Rest Movement: +30 / -90
- Flex / Reflex Movement: +225 / -100
- Width x Length: 560 x 2200 min
- Height (min): 595 mm
- Height (max): 1035 mm
- Mattress Thickness: 70 mm
- Castors Diameter: 100 mm
- Max Patient Weight: 360 kg / 800lbs
- Kidney Surgery Position: 150 deg. (optional, OT80.20NK)
- Stainless Steel T-Base: Optional, OT80.20NS
- Visco Mattress: Optional, OT80.20NV
Movements
- Height: Electro-hydraulic
- Back Rest: Electro-hydraulic
- Tredelenburg: Electro-hydraulic
- Lateral Tilt: Electro-hydraulic
- Sliding : Electro-hydraulic
- Central Locking: Electro-hydraulic
- Head Rest: Manual
- Leg Rest, Up/Down: Manual
