Model Om-Sigma -Operating Table System With Interchangeable Table Tops

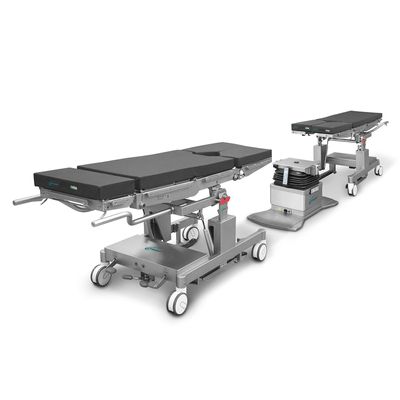

??-SIGMA - transporter for table tops carriage with height adjustment and dorsal section bending. Operating table OM-SIGMA, which is a system of interchangeable tabletops and transporters, ensures sterility in the operating theatres, saves time while preparing the patient for the surgery and significantly increases throughput. This model allows you to transport the patient within the operating theatre, excluding the stage of transferring him to a hospital gurney. It reduces the risk of injury to the patient after complex operations.
- Technical parameters: -SIGMA-06, -SIGMA-09, -SIGMA-12.
- Table top length, not less than: 2200 ??
- Table top length (without head and leg sections), not less than: 1100
- Table top width over the guides, not less than: 590
- Table top width, not less than: 540
- Min. table top height (pads thickness is not included), not more than: 670
- Max. table top height (pads thickness is not included), not less than: 1130
- Table top longitudinal tilt, not less than: - 30º/+ 30º
- Table top lateral tilt , not less than: + 20º/- 20°
- Dorsal section tilt (up/down), not less than: + 75º/- 45°
- Head section tilt (up/down), not less than: + 45º/- 45°
- Leg section tilt (up/down), not less than: + 30º/- 90°
- Table top tilts provided FLEX positioning: 225°
- Table top tilts provided REFLEX positioning: 105°
- Pads movement (dorsal section bending), not less than: 105
- Table top longitudinal motion: 320
- Min. height of table top, placed on the moving trolley (pads thickness is not included), not more than: 820
- Max. height of the table top, placed on the transporting trolley (pads thickness is not included), not less than: 1050
- Longitudinal tilt of the table top, placed on the transporting trolley: + 17º/- 17°
- Transporting trolley length (without the table top on it), not more than: 1955
- Transporting trolley width, not more than: 770
- Transporting trolley height (adjustable): 760…995
- Table safe working load, not less than: 250 kg
- Table safe working load (with functions limitation): 350 kg
- Power network settings: ~ 220, 50 Gz
- Power intake , not more than: 750 Wt
The table is convenient for the surgical team: tabletops can be moved by the transporters both from the side of the head and leg sections. Table adjustments are carried out by a wireless remote control as well as a backup control on the table column. The transporters move easily thanks to the large double castors Ø150 mm with a direction lock.
Operating table OM-SIGMA is compatible with all sets of additional accessories produced by the company.
