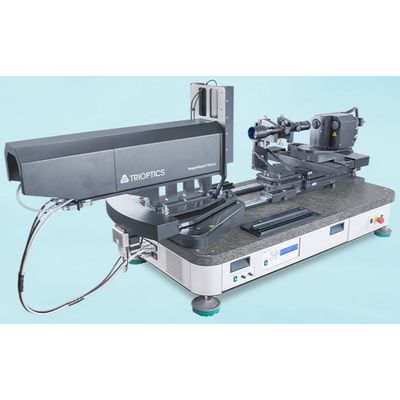

TRIOPTICS ImageMaster -Model Afocal -Optical Testing System

SHARE

The ImageMaster Afocal by TRIOPTICS is an advanced optical testing system designed to assess afocal optical systems such as telescopes, riflescopes, and binoculars. It automates the process of measuring image quality, thus ensuring consistency and eliminating the subjectivity inherent in visual testing methods. The system supports flexible configurations to measure specific optical parameters, making it suitable for various optical components. An important feature is its ability to measure the field of view and eye relief, critical for evaluating the performance of riflescopes and spotting scopes. The system includes versatile test specimen holders and software for precise automated testing. This makes it an invaluable tool for professionals seeking objective, repeatable results in the alignment and quality assessment of optics used in diverse sectors such as automotive, aerospace, and medical technology.

Most popular related searches
specimen holder
medical technology
scope system
medical imaging testing
medical imaging system
medical imaging
eye view

Image quality testing for telescopes, riflescopes, binoculars and spotting scopes

Afocal optics, such as those used in riflescopes, are often still tested today using purely visual test procedures. The results are therefore based on the subjective assessment of the tester and thus the repeatability of the measurement results is not guaranteed. Due to the multitude of determining factors, subjective quality testing often reaches its limits even among the most experienced professionals.

With the ImageMaster Afocal optical afocal systems like telescopes, riflescopes and binoculars are tested in terms of functionality and image quality with a variety of specific optical parameters.

Precision

Does it really make sense to rely solely on subjective quality assessments in the field of afocal optics, where maximum precision is required? Numerous parameters such as chromatic aberrations or knowledge of the exact magnification are decisive factors for quality assessment. The precise measurement of these parameters is an essential precondition for perfect functionality.

Flexibility

The ImageMaster Afocal telescope test bench is designed for testing the image quality of afocal samples such as telescopes and riflescopes. Options and suitable sample holders allow the measurement of binoculars and spotting scopes.

Operator independent

The horizontal measurement device has been specially developed for precise and automated measurement of the image quality (MTF and further parameters) of afocal optics. The image quality is determined objectively and thus operator-independently.

Testing the image quality of binoculars

Are you looking for an automated measurement solution to determine the image quality of binoculars? We have further developed the ImageMaster Afocal: Suitable test specimen holders for binoculars with corresponding software now enable precise and automated measurement of the imaging quality of these afocal optics.

Image quality testing of spotting scopes

If you are looking for an automated measurement solution for determining the image quality of spotting scopes, you should take a look at the ImageMaster Afocal system with matching test specimen holder for spotting scopes and corresponding software.
