Schaerer Medical AG
About

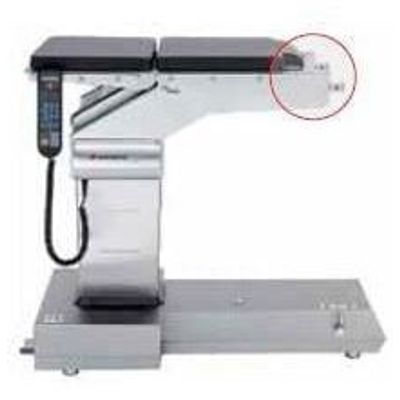

Schaerer Axis - Model 700 - Ortho-Trauma and Spine Table

SHARE

The ortho-trauma and spine table with one electro-hydraulically driven table top movement. Specially for orthopaedic, spine and trauma accessories (Extension devices OTZ, MTS, MIS, Carbonplate and Carbon Spine Frame). AXIS 700 is a AXIS 500 but without seat plate. This means you save the money of the seat plate if you use OTZ, MTS, CSF etc.

Most popular related searches
surgery table
ISO 13485
orthopedic spine
patient positioning
patient care
trauma surgery
surgical
surgery
neuro-spinal surgery
orthopedic
  • The Schaerer AXIS 700 is an universal OT-table and also specialized for Neuro/Spine and Ortho/Trauma surgery.

  • The CSF (Carbon Spine Frame) has 200kg/441lbs patient weight capacity and no need of floor support.

  • The MTS (Modular Traction System) has versatile functions and an easy handling.

  • The Carbon plates have 850 or 1400mm/33,5 or 55".

  • AXIS 700 is a AXIS 500 but without seat plate. So you safe the money for the seat plate if you use MTS, CSF.

The Schaerer AXIS is an universal table for all surgical disciplines. It is the most cantilevered top line OT-table.

The Schaerer AXIS is the most successful product line. It is an operating table that has already proven its capabilities thousands of times and even

today is one of the most used tables in the world because of its unique cantilevered column.

The proven reliability of the Schaerer AXIS, associated with their outstanding flexibility and their uniquely functional design, are good reasons for many hospitals around the globe to opt for a Schaerer AXIS table.

Highest capacity for eccentric column table

Highest weight capacity of 220kg/485lbs for a cantilevered column table with 1450mm/57" X-Ray window. This means more safety for all kind of patient positions, all kind of operations, all surgical disciplines and a much more stable table.

Highest grade stainless steel table

Full Stainless steel without rubber cover on the column makes the table ideal from hygienic perspective.

Largest X-ray window in the market

Due to its very eccentric column design, highest X-ray window in market. No need for sliding! Copied often – never reached!

Highest Durability of hand control
Hand control design with several functions and LCD screen. Automatic system check show failures for first level service information without delay. Programming features, different language options, adjust “Level” position, additional check for connections.

Highest safety features
Schaerer AXIS 500-700 is additionally equipped with a second built-in panel controlled an independent circuit. If in an emergency situation the main system fails, the operating table can be controlled with the emergency panel.

Highest patient comfort
Our viscoelastic pads are electric conductive, silicon and phthalate-free, 69mm/2,7" high, Velcro free, Ultrasonic welded seams. Easy removable and attachable. Appropriate for long operations and heavy weight patients.

Highest flexibility
Axis is offered in different variations to fully comply with user’s needs.
Maximum eccentric column

Maximum access for the surgeon, nurses and technicians without additional longitudinal shifting. Table top area extends beyond the column up to 1450mm/57".

Maximum ergonomy
The small T-shape base design provides the most ergonomic and easy access for the surgeons.
Maximum stability

The use of high quality Swiss materials and components ensures strength and a long service life. 220kg/485lbs all position dynamic weight capacity. Patient weight up to 350kg/ 771lbs.

Maximum safety
Only Schaerer operating tables have two independent motor pump systems that can be powered by batteries for several operating days.

Highest quality
Swiss precision wherever you operate since 1892. Manufactured in Switzerland with design and engineering of highest standards. More than 100 years of experience in design, development and manufacturing surgical tables.

Highest mobility and steer-ability
With two unique, easy to use and fast foot switchers for lock/unlock and one for direction control.

Maximum quality with Swiss precision

Manufactured in Switzerland with design and engineering on highest standards, in accordance with certified quality standards  ISO 13485:2016.
