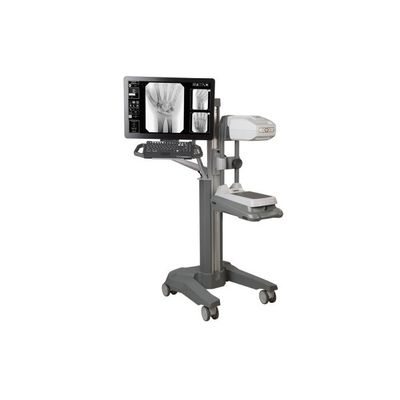

Ziehm -Model Mobile DI -Orthoscan mini C-arm
Portable Digital Diagnostic Imaging & Fluoroscopy. Mobile DI is the ideal mini C-arm for your clinical and off-site or remote access extremity imaging needs. This portable X-ray and fluoroscopic device offers a range of connectivity options for your electronic management records and produces excellent digital image quality.
Most popular related searches
Portable and Lightweight
- Ease of movement between exam rooms, satellite clinics, emergency departments, or off-site venues
- Weighing approximately 12,9 kg, Mobile DI introduces versatility to orthopaedic imaging
- At 30,5 cm by 48,5 cm, Mobile DI possesses the smallest footprint on the market for mini C-arms
Advanced Touchscreen Interface
- Seamless operation of system controls while still allowing for keyboard functions
- Experience similar to a smartphone or tablet
- Enhance interaction while viewing detailed anatomy
- 24" high resolution diagnostic widescreen monitor for a 20 % larger viewing area
Imaging Flexibility
- Easy access to weight-bearing knee and foot views
- Mobile DI can be placed on a table top, or mounted on the accessory cart enabling Mobile DI to move easily between rooms
- The accessory cart also provides orbital C-arm rotation needed for knee views
Accessory and connectivity options
- Accessories such as the wheeled storage case or the mobile accessory cart expand the diagnostic capability of Mobile DI, allow for additional portability, and maintain clinical excellence
- Connectivity allows for images to be transferred wired or wirelessly, making off-site diagnosis easy, cost effective, and fast. Images can be sent in standard imaging formats: JPEG, TIFF, DICOM, or EMR. Imaging with Mobile DI is instant with no development or scanning needed.
- Imaging technology : CMOS, flat-panel, 15 cm x 12 cm
- Resolution : 2 k x 1.5 k
- Pulsed fluoroscopy : not available
- Viewing option : 24`` high-resolution monitor
- Footprint : 30.5 cm x 48.3 cm
- Weight : 15.9 kg
- Orbital movement : --
