Model eOAE - Otoacoustic Emissions (TEOAE+DPOAE)
FromBioMed Jena GmbH
When an acoustic signal hits the auditory system, the inner ear sends back a very quiet sound, the otoacoustic emissions. A distinction is made between transitory otoacoustic emissions (TEOAE) and distorsively produced otoacoustic emissions (DPOAE). Both TEOAE and DPOAE can be measured with the eOAE device. A special screening mode is implemented for performing screening examinations on newborns.
Most popular related searches
TOAE
- User defineable stop criteria
- 4 adjustable profiles
- Display as time graph or frequency diagram
- All parameters at a glance
DPOAE
- 4 adjustable profiles
- Display as DP-Gramm and Table
Screening
- Method TEOAE
- Clear result presentation
- Easy charging via docking station
- Easy cleaning of the probe parts
- Good disinfectability through touch screen
- Optional printer available
- Clear measurement data management also on the device
- Qwerz keyboard for convenient data entry on the device
- GDT-Interface
- Full integration into the eDM Diagnostic Manager

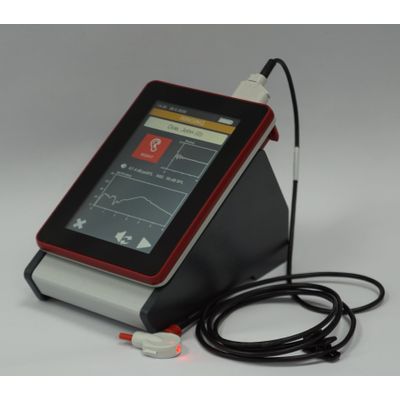

eOAE device
- Samplerate: 48 KHz
- ADC resolution: 24 Bit
- Touch display: 480x794 Pixel
- Weight device: only 320 Gramm
- 3700 mAh battery for long operating times
- Dimensions: 140x95x26 mm
- Completely dismountable and easy to clean probe
- Compatible with Sanibel™ ADI ear tips
- Meets the requirements of DIN EN 60645-6:2010
Standard delivery
- Bag with inlay compartments
- eOAE device with probe
- Sorting box with ear tips
- Set of spare parts probe
- Charging station with docking function
- USB flash pen with PC software
- Test cavity
min. Computeranforderungen
- Processor: Intel i5
- RAM: 4 GB
- Screen-Resolution: 1920x1080 Pixel (Full HD)
- Windows 10
