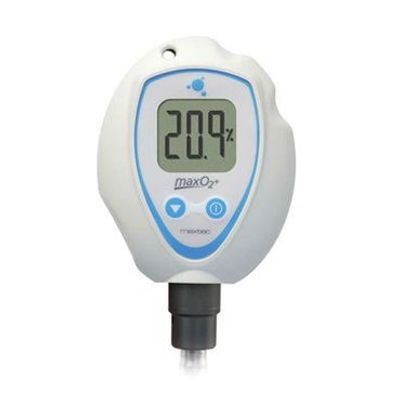

Maxtec -Model +AE -Oxygen Analyzer
The Maxtec Oxygen Analyzer quickly adapts for use in tubing applications and is ideal for checking oxygen percent accuracy in line or on concentrators. Its patented ergonomic design fits comfortably in your hand and features a simple one-touch on/off and calibration. The MaxO2®+AE will calibrate to room air (20.9%) or 100% oxygen using an external sensor.
- Portable: Handheld with Low Battery Indicator warning
- Calibration Reminder: Once a week
- Easy To Use: Push-button On/Off
- Long Lasting: 2 AA battery power source providing 5,000+ hours of continual use
- Ready to Use: Comes with oxygen sensor, coiled cable, tee adapter, battery and operations manual
Dimensions:
3.75” (tall) x 3.00” (wide) x 1.33” (thick)
Measurement Range: 0 - 100% Oxygen
Display Resolution:
0.1% Oxygen
Warm-up Time:
None Required
Operating Temperature Range:
15°C - 40°C (59°F - 104°F)
Operating Humidity Range:
0 - 95% RH non-condensing
Oxygen Measurement Accuracy:
±3% actual oxygen level over full operating temperature range
Sensor Connection:
M16 x 1 Thread
Sensor Operating Life:
>900,000 oxygen percet hours, minimum 2 years in typical applications
Maximum Storage Temperature Range:
15°C - 50°C (5°F - 122°F)
Optimal Storage Temperature Range:
5°C - 25°C (41°F - 77°F) 90%
Response Time:
<15 seconds @ 23°C
Low-Battery Indicator:
“BAT” icon displayed on LCD
Power Requirement:
2-AA Alkaline Batteries (2x1.5 Volts)
Calibration Reminder:
One week timer started with every calibration , “CAL” icon displayed on LCD
Sensor Type:
Maxtec MAX-250+ galvanic fuel cell
