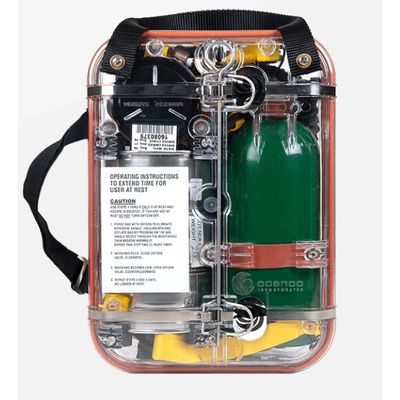

Ocenco -Model EBA 6.5 SCSR -Oxygen Delivery System
The EBA 6.5 is a self-contained, closed circuit breathing apparatus using compressed oxygen as a source rather than generating oxygen from chemicals. The rugged clear case allows the miner to quickly and accurately visually assess the condition of the device. The oxygen delivery system allows the user to inhale immediately from the device when donned, and provides up to 100 liters of oxygen flow during high work rates. Manual adjustment of the oxygen valve will provide a user at rest up to 8 hours of respiratory protection.
Oxygen Supply: 157 liters compressed oxygen
Rated Duration: 90 minutes at 35 l/m VE
Donning Time: Less than 30 seconds
Service Life: 15 years
Storage Temperature: 10°–140° F (-12°–60° C)
Inspection: Visual
Inspection Frequency: Every 90 days for stored units; daily if carried
Approvals: MSHA/NIOSH, Republic of South Africa, Australia, China, CE
Weight as Donned: 8.0 lbs. (3.6 kg)
Product Dimensions: 8.6” x 11.9” x 4.6” (21.6cm x 30cm x 11.4cm)
