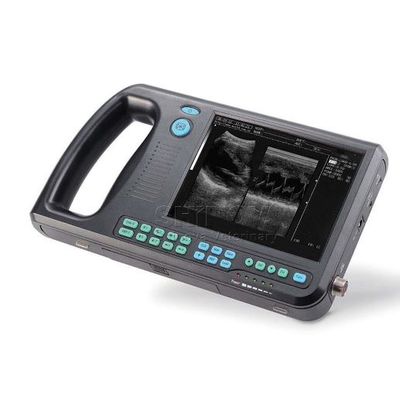

Shinova -Model SonoScan A1V -Palm Ultrasound System
Palmtop SonoScan A1V is the latest model by us,weighting only 1.3KG,is distinguishable by its bright and clear image quality. The interchangeable probes offer a wide range of diagnostic applications.This scanner is a cost effective solution for family doctors,veterinary scanning.The complete software and the high product versatility are available in it.
Most popular related searches
- BrandSHINOVA
- ModelSonoScan A1V
- Category Black/White Ultrasound
- Promotion Price Get Latest Price!
- Min. Order1 Pieces
- Delivery TimeWithin 15 days against payment
- PaymentT/T, L/C, Paypal, Cash, Other
- Package Size (cm)48*25*39
- Gross Weight (kg)6.00
- Applicable AnimalCat, Dog, Equine, Bovine
- Applicable Dept.Operating Room, Exam Room
- Scanning Method: Convex, Micro-convex, Linear, rectal
- Display Mode: B, B+B, B+M, M
- Gray Scale: 256 levels
- Monitor: 6.4 inch TFT color LCD
- Image Procession: DFS, DRF, RDA, VGA/DSC and Image Post Procession
- 128 frames for cine-memory
- 32 image permanent storage
- Image magnification: ×1.0, ×1.2, ×1.5, ×2.0 times
- 4 focusing combination selectable
- 4 different coded-color available
- 15 difference kinds of body marks with difference calipers.
- Measurement in Distance, Circumference/Area, Time/Heart Rate/EF rate for heart, and GS, CRL, BPD, HC, FL, AC for OB/GY measurement, and Gestational Age, Fetal weight, EDD calculation.
- Characteristic showing in real-time clock, ID, Sex, Age, Focusing Info and Gain (Near, Far, Overall) info.
- PAL-D output
- Mouse interface
Standard:
Main unit + 6.5MHz rectal linear probe
Optional:
- R40/3.5MHz convex probe
- R20/5.0MHz micro-convex probe
- L40/7.5MHz linear probe
