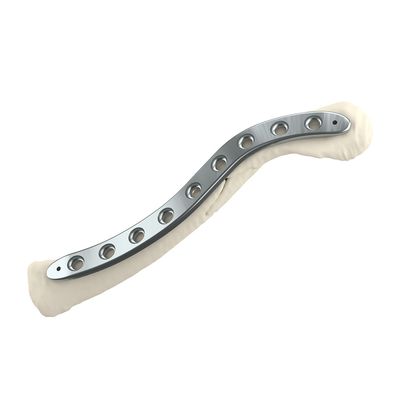

Meticuly - Patient Specific Clavicle Reconstruction Plate
The personalized titanium clavicle plate is designed anatomically to match natural shape of individual clavicle bone based on CT imaging. This customized solution allows surgeons to address acute fractures, malunions, and nonunions of the clavicle. Meticuly engineers provide supports in design customization and pre-operative planning to achieve surgery with smaller wound by minimally invasive plate osteosynthesis (MIPO) technique.
Using 3D mirroring of normal contralateral side of the clavicle acquired from CT imaging, each titanium plate is designed specifically to match natural anatomic of individual clavicle. This to ensure the best outcome in cosmetic appearance after the surgery.
In-built screw fixtures are designed to secure cranioplasty to skull base, minimizing the need for extra fixation plates. Counter-sink screw holes serve to hide screw heads from bulging above prosthesis’ outer surface which usually results in an unpleasing appearance.
Personalized titanium plate is designed based on biomechanics and evaluated using finite element analysis to ensure high strength and durability. Verified for mechanical strength following international standards
Personalized design
Anatomically pre-contoured fixation plate with optimized plate length to match individual clavicle bone
Customizable screw configuration
Number and position of holes are fully customizable to serve surgeon pre-operative plan
Referencing hole
Facilitates positioning of plate and surgical guides through k-wire insertion
Tapered medial tip
Facilitates percutaneous insertion and prevents risk of soft tissue injury
