CLINIO D -Pendant-Mounted Monitor
Brilliant, versatile and hygienic: CLINIO displays are ideally suited for all kinds of everyday use in hospitals. They have outstanding color and image properties and are highly flexible in terms of input format. The CLINIO D is the perfect pendant-mounted monitor: robust, low-maintenance and made with industrial components that are ideal for constant use. Almost all input signals can be displayed. Thanks to its stable housing, the CLINIO is the best choice for complex operating theater scenarios with a large number of arm-mounted devices.
- Optimized picture quality
- Certified medical device
- 4k UHD resolution
- Slim hygienic design
- Long-term availability
- Aluminum casing
- Integrated power supply
- VESA compatible
The aesthetically designed yet robust aluminum housing is ideally suited for use in a medical environment. The hygiene cover and various cable seals prevent dust, dirt and fluids from penetrating the housing.
An optional PCAP multi-touch screen is also available. This allows any connected computer to be operated conveniently through the monitor and recognizes touch gestures with up to 10 fingers.
The computer is operated solely with the COMMAND BAR, a toolbar that also functions when the user is wearing surgical gloves. The COMMAND BAR can also be used to reset the computer, put it in standby mode, or switch between different types of input signal.
The CLINIO has DICOM Part 14 calibration (grayscale correction), which means it can be used for diagnostic purposes.
Only robust industrial components with long-term availability are used for CLINIO displays. These are also used in the hi-tech sectors of the automotive and aerospace industries.
CLINIO displays all have ALS (automatic luminance stabilization). ALS compensates for fluctuations in background lighting.
Displays often reproduce images incorrectly. CLINIO displays offer factory-calibrated presets for various color spaces (BT.709, BT.1886 and BT.2020(emulated)) in order to prevent color deviation.
RS232, DisplayPort and DVI connections enable the CLINIO to communicate with all components of the medical IT world. Almost all signal types can be displayed, from VGA and CVBS to DisplayPort and HDMI. Device safety is enhanced by supplementary power equalization.
GPIORemote control via GPIO facilitates the use of a wide range of applications. The user can switch between inputs, retrieve presets and change the display`s brightness and contrast settings by means of a foot switch.
- Endoscopic and surgical imaging
- Imaging in the operating theater
- Nurses` station
- Patient monitoring
- Orthopedics
- Displaying x-rays
- Sterile environment

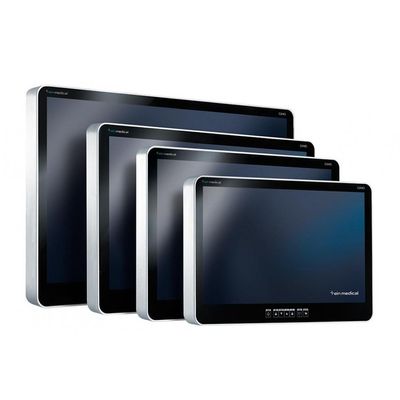

CLINIO monitors are available in various resolutions (FullHD, WUXGA) and sizes (24", 27" and 32"). The 27" and 32" displays are available in 4K UHD.
The IP54-protected housing is powder-coated with POLYFLEX® STERIDUR || germicidal varnish and completely closed, making it hygienic and easy to disinfect. It has no vents, which means that there is no air exchange with the environment.
The CLINIO D is a class 1 medical device. This guarantees that the display is safe for use in the patient`s vicinity.
Safety IEC 60601-1 3rd Ed.
EMC IEC 60601-1-2 4rd Ed.
Made in Germany
