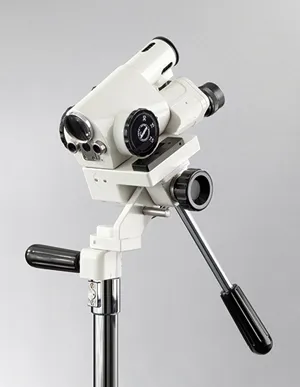

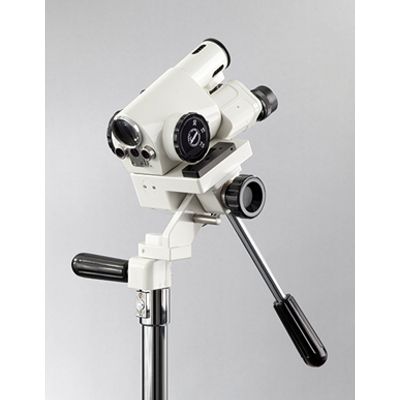

Leisegang -Model 3ML LED -Photo/Video Colposcope
Photo/video colposcope for the documentation of examination results. Intended for the connection of external cameras: Magnification changer for x 7.5/15/30 magnification; Integrated mono photo/video optics with the appropriate magnification; Digital SLR camera or video camera can be connected.
Most popular related searches
- Stands: Upright stand, swing-o-matic stand or balance-o-matic stand
- Assembly: On roller base or on examination chair
- Cameras:
Video camera, 1.3 MP, USB 2.0 interface; for combination with a video tube,
Canon EOS, 18 MegaPixel, USB Hi-speed, video output (PAL/NTSC); for combination with photo tube - Software: MediaWorkStation software pre-installed on touch panel PC; VC-K27 Driver/Viewer
- Tray: To support the laptop; for swing-o-matic and balance-o-matic stand
- Illumination: White LEDs, 10 W power consumption, intensity of illumination 45.000-52.000 lx, colour temperature 5.700-6.000 K
- Working distance: 300 mm
- Beam path: Convergent
- Eyepieces: Straight insight
- Magnification: 7.5x/15x/30x
- Field of view diameter: 46/23/11.5 mm
- Light field diameter: 58 mm
- Dioptric correction: +7 to -7 diopters
- Green filter: pivotable
- Camera interface: Interface to connect with an external camera
- Horizontal fine adjustment: 40 mm
- Vertical fine adjustment: 80 mm
- Colours: standard colour grey white (RAL 9002), custom colours (RAL) available
