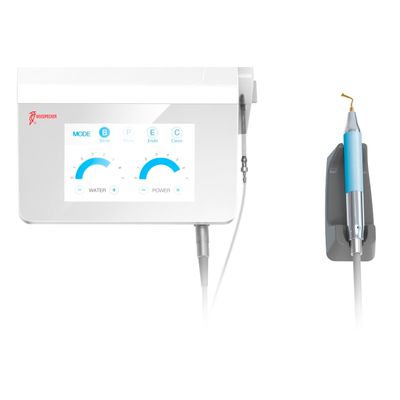

Woodpecker - Model Surgic Touch - Piezo Bone Surgery Device

Clinical application
Minimally invasive tooth extraction, Intralift, Sinus Lift, Alveoloplasty, Apical cyst extraction, Crown Extension, Crest splitting, etc.

Micron Cutting
The vibration amplitude of tip is between 20-100nm. The minimum surgical incision is 3.5mm long, 0.5mm wide, which will help with small operating area and fast postoperative recovery

Selective Cutting With No Injury to Soft Tissue
For soft tissues (neural, blood vessels and mucous membranes, etc.), there is no cutting effect, which can protect the vascular nerve of the operation area to a large extent, greatly reducing the risk of injuring soft tissues (neural, vascular, mucosal, etc.).

Cold Cutting Mode
Ultrasonic technology produces very little heat while cutting. And iced water can quickly cool the tip and ensure the temperature below 38 ° C. At the same time, the water spray flushes the wound during operation, bringing no bleeding and enabling clear vision of operation area, which makes it easy to operate.

High-performance Handpiece
Optimized handpiece with stronger sealing technology.
High temperature cooking disinfection causes no loss of performance.
High-brightness LED brings clearer operating vision.
Bringing doctor better clinical application experience.

Multi-function Foot Pedal
Equip device with multi-function foot pedal, which makes it easy to control water flow, working mode, and power, simplifying operation procedures and realizing efficient operation.

7-Inch Touching Screen
Abandoning the previous button operation settings, innovatively adopt 7-inch screen. While clearly displaying information, operate directly by tapping the screen

Tips Kit
Specially used for tooth extraction, crest splitting, and retro preparation. Adopt gold plating which is wear-resistant and practical with long time of endurance.

For different treatment needs, four different working modes are set: cutting mode, periodontal mode, endodontic mode, and cleaning mode.

Cutting Mode
Under cutting mode, according to the bone density, adjust power and water volume. The power levels are divided into 7 classes:

01 Level 5, 6, and 7: Class I bone
(suitable for bone with high bone density / big cortical bone)

02 Level 3 and 4: Class II bone
(suitable for bone with high bone density / large cortical bone)

03 Level 2 and 3: Class III bone
(suitable for bone with uniform bone density / good cortical bone)

04 Level 1 and 2: Porotic bone
(suitable for bone with low bone density / poor cortical bone)

Different bones respectively match 7 power levels, avoiding over power output and improving safety and stability;

Periodontal mode
Under teeth mode, the power and water volume are adjustable.

Endodontic mode
Under teeth mode, the power and water volume are adjustable.

Cleaning mode
Under cleaning mode, step on foot pedal for 3s to confirm cleaning, then the main unit can automatically complete pipe cleaning for 25s. After each treatment, please clean the waterway (include pump line and handpiece).

Dimension
276mm x 267mm x 110mm

Intermittent running device
Intermittent running with 10s pause after 60s operation.

Water flow
25~110ml/m

Mains voltage
100-240V~50Hz/60Hz150VA

Working frequency
24-36KHZ

Weight
2.8KG

Warranty
5 years

Main unit
Handpiece x 1
Torque wrench x 1
Tip x 7
Tube for peristaltic pump x 3
Foot pedal x 1
Disinfection kit x 1

Disinfection Kit
Handpiece x 1
Torque wrench x 1
Tip x 7
Tube for peristaltic pump x 3
Disinfection kit x 1

Trolley
Trolley x1

SURGIC TOUCH

• Micron cutting
• Selective cutting with no injury to soft tissue
• Cold cutting mode
• High-performance handpiece
• Multi0function foot pedal
• 7-inch touching screen
• Tips kit

Technical data

• Device for intermittent operation: 60s ON, 10s OFF
• Power-supply voltage: ~100V-240V 50Hz/60Hz 150VA
• Size of main unit: 276 mm×267 mm×110mm
• Weight of main unit: 2.8kg
