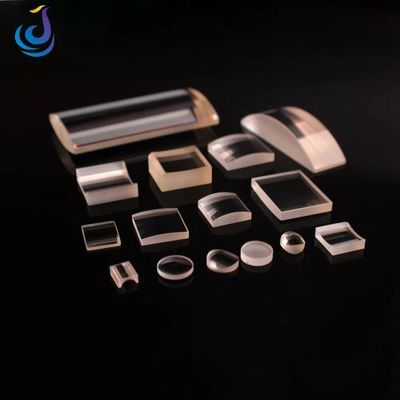

Realpoo -Model RP-CL -Plano Convex Cylindrical Lenses
Cylindrical lenses are typically used to focus incoming light to a line, or to change the aspect ratio of an image. they are used for the optics, lasers, medical science, electronics, tele-communication and others. Realpoo Optics can offer Cylindrical Lenses include convex Cylindrical Lens, concave cylindrical lens, meniscus cylindrical lens, and doublet achromatic cylindrical lens ect.
Model No.: RP-CL
Brand: REALPOO
Support Customization: Oem, Odm
Place Of Origin: China
Use: Optical
Structure: Plano-Convex
Shape: Spherical, Cylindrical
Diameter Tolerance: +0/-0.1
Thickenss Tolerance: +/-0.1
Surface Quality: 40/20
Centration: 3 arcmin
Product Name: Plano Convex Cylindrical Lens
Material : N-BK7, N-SF1 , Fused Silica , N-SF10 etc
Diameter : 2mm ~ 300mm
Focal Legnth Tolerance :+/-1%
Diameter Tolerance :+0.0/-0.1mm
Thickness Tolerance :+/-0.1mm
Surface Quality :40/20 or better
Centration :<3 arc minutes
Clear Aperture :>90%
Bevel : Protective bevel as needed
Coating :Upon your request
