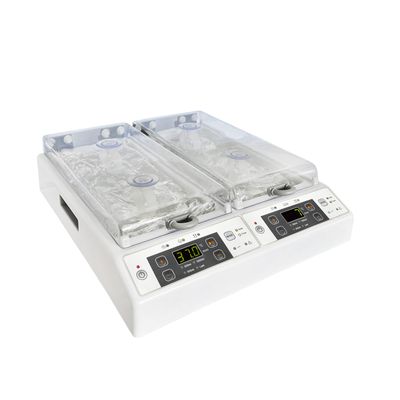

Tahat -Plasma & Blood Products Thawing Device PlasmaBox

CE MDR pending

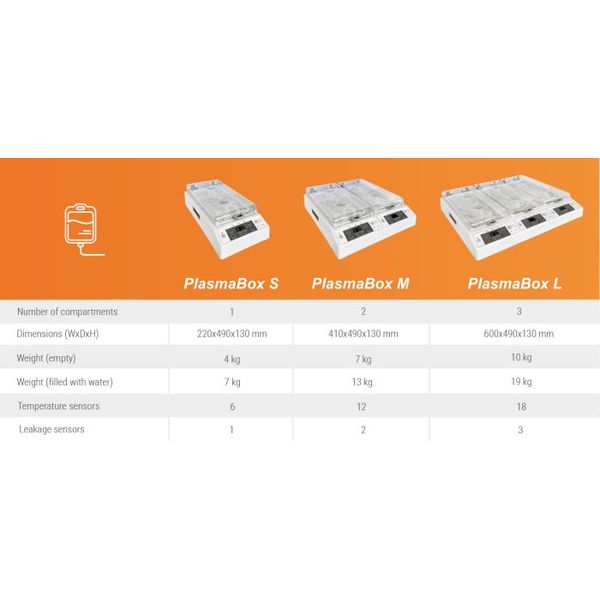

• 3 models with 1, 2 or 3 compartments
• Suitable for all types of bags and bottles (up to 1 000 ml)
• Dry thawing. No direct contact with water
• Overheating protection (6 temperature sensors per compartment)
• Leakage detection

• State-of-the-art technology of dry thawing. No direct contact with water
• High safety for patients with no risk of plasma infection
• Gentle thawing system allows achieving a homogeneous temperature of the product
• Thaws up to 9 bags at a time (model L)
• Thaws all types of bags and bottles (up to 1 000 ml)
• 6 temperature sensors per compartment
• Leakage detection sensors
• Compact and lightweight

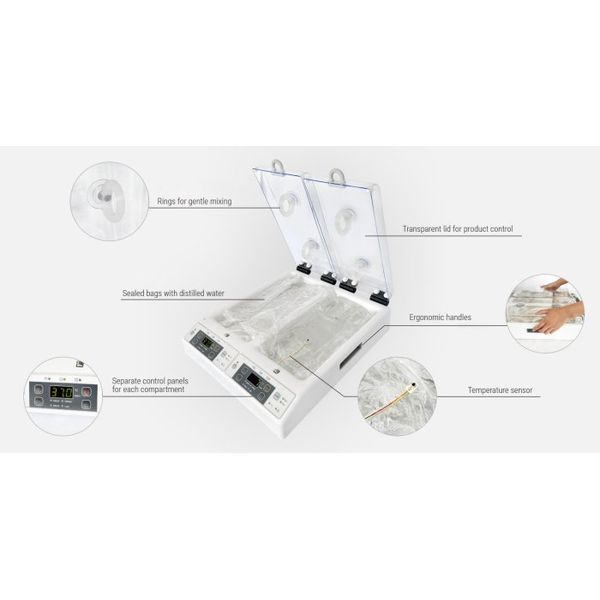

• Transparent lid for visual inspection and control
• Time saver for laboratory and medical personnel - no need to change water and wash the device every day

• 15 minutes to fully operational
• 2 operation modes:
• TIME (standard 37 °?)
• AUTO (rapid 37-45 °?)
• Separate control panel for each compartment
• Memory settings (one-button operation)
• Ice free indication (ICE FREE)
• Heated plasma indication >33°C (for transfusion)
• Indication of current temperature and time remaining till the end of the program
• Indication of bags with plasma/blood presence in the device
• End of program alarm

• No need to drain the water. Quick replacement of the sealed bag with distilled water once a year
• Easy care with standard detergents and disinfectants
• Ergonomic handles
• Integrated system for wireless monitoring and diagnostics

Power supply: 230 VAC\50 Hz ??? 110 VAC\60 Hz
Temperature settings: 37 °? or 45 °?
Heating time (to 37°?): up to 15 min
CE MDR: class I
Safety class: I, protective earth

• Overheat protection
• 6 temperature sensors per compartment
• Dry thawing and warming technology (no direct contact with water) eliminates the risk of bacterial contamination
• Leakage sensor in each compartment
• Open lid indicator
• Audible and visual alarms at the end of the cycle
• Self-diagnostic system
• Smooth surfaces and rounded edges ensure safety when working with bags, reducing the risk of their accidental damaging

• Blood banks
• Laboratories
• Intensive care units
• Operating theaters
• Blood services providing blood transfusion therapy
