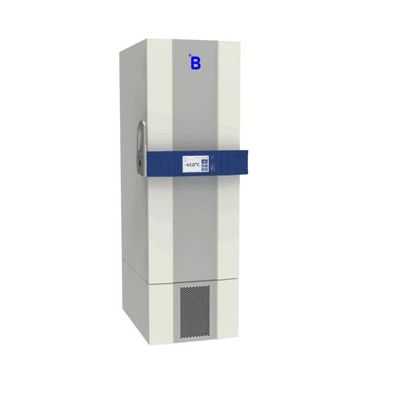

B-Medical Systems -Model F401 -Plasma Storage Freezer
Plasma Storage Freezer with 387 L | 13.67 cu ft storage capacity.
Most popular related searches
plasma storage freezer
blood bag
blood management
blood storage freezer
blood plasma
remote monitoring software
blood storage
- Set Temperature: - 41°C
- Climate class (ambient temperature range): +10°C to +43°C
- Alarm limits: - 32°C | - 46°C
- External dimensions (HxWxD): 1988 x 699 x 1039 mm | 78.27 x 27.52 x 40.91 in
- Refrigerant Type: Natural R290

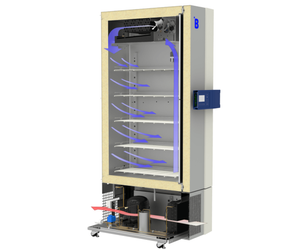

- Controlled air cooling system for uniform and stable temperature distribution
- Fast temperature recovery even in case of frequent door openings
- Smart automatic defrosting technology enabling stable temperature during the defrost cycle
- Automatic switch-off of the evaporator fans at each door opening to reduce heat transfer
- Extended autonomy in case of power failure
- Audio-visual alarm system with remote transmission via SMS or email
- °B Connected universal software for remote monitoring, reporting (in compliance with FDA 21 CFR Part 11), and long-term archiving
- High cooling efficiency through natural refrigerants in conformity with US SNAP and EU F-Gas regulations

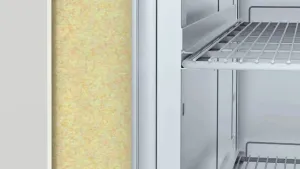

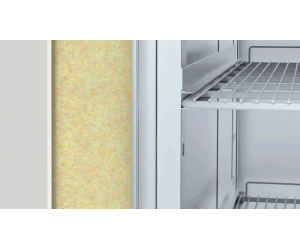

- Insulated inner doors, sealed gaskets, enhanced frame for minimized cold air loss and heat conduction
- Frost prevention reducing pressure on the compressor
- High-quality stainless steel cabinets with antibacterial coating and injected with thin polyurethane foam providing high thermal insulation and storage capacity

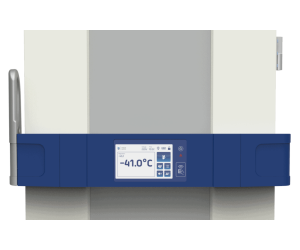

- 7” touchscreen with temperature display easily accessible in the door handle
- Minimal ice formation allowing easy deicing
- Password protected/NFC card based door locking mechanism
- USB port and SD card slot for easy export of data
- Set point of -41°C
- Modular interior equipment
- Easy access to the lower drawers
- High-quality stainless steel and other materials for an extended life span
- Gross volume : 478 L | 16.88 cu ft
- Storage Capacity : 387 L | 13.67 cu ft
- Blood bag capacity (350 ml) : 345
- Set Temperature : – 41°C
- Setting range : -41°C to -32°C
- Alarm limits : – 32°C | – 46°C
- Climate class (ambient temperature range) : +10°C to +43°C
- Certifications : cCSAus | EU MDR Class IIa | ISO 14644-1 | Class 4 | SCoPE | US FDA Class II
- Cooling technology : Forced air cooling system
- External dimensions (HxWxD) : 1988 x 699 x 1039 mm | 78.27 x 27.52 x 40.91 in
- Internal dimensions (HxWxD) : 46.18 x 17.60 x 29.05 in | 1173 x 447 x 738 mm
- Net weight : 276 kg | 608.48 lb
- Frequency : 50 Hz
- Supply voltage : 230V
- Energy consumption : 5.4 kWh/24h
- Noise level : 47 dB
- Refrigerant Type : Natural R290
- Heat emission : 193 Kcal/h
- Materials : Stainless steel
- Display : 7" touchscreen screen
- Remote monitoring : °B Connected software
- Hold over time : 4.9 h (-41°C to -10°C)
- Defrosting technique : Automatic (hot gas)
- Access control : Password or badge
- Data export : SD card | USB port
- Product Type : Plasma Storage Freezer
