UMA -Â Model PA-100 - Plethysmo Analyzer
FromUMA Instruments

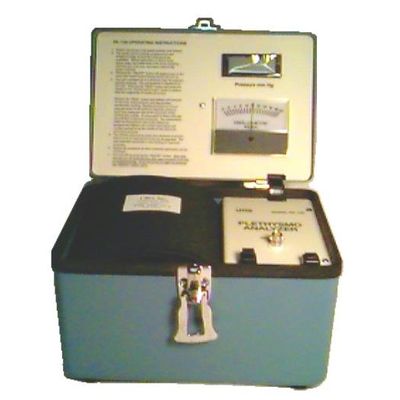

The PA-100 is an enhanced Collens Sphygmo-Oscillometer developed to assist physicians in diagnosing peripheral vascular disease and to monitor arterial grafts. UMA Plethysmo Analyzer accurately measures volume changes of blood flow in extremities.
Most popular related searches
peripheral vascular disease
artery graft
peripheral vascular
medical instrument
vascular disease
blood pressure
blood flow
blood pressure monitoring
disease monitoring
anatomy
- An economical tool for non-invasive arterial investigation.
- Dual displays for both blood pressure and oscillometric measurements.
- Accurate and repeatable readings in the hands of multiple examiners.
- An excellent predictor of the angiographic anatomy of the ischemic diabetic extremity.
- Portable with rechargeable battery pack.
- Automatic shut-off.
- Case- 6 X 9 X 6″ hospital grade aluminum.
- Weight- 3.5 lbs.
- Input Pressure Range- 0-250 mmHg.
- Oscillometric Index Range- 0-20 units.
- Linearity – better than +.5% span.
- Operating Current- 30mA.
- Power Consumption- 225mW
