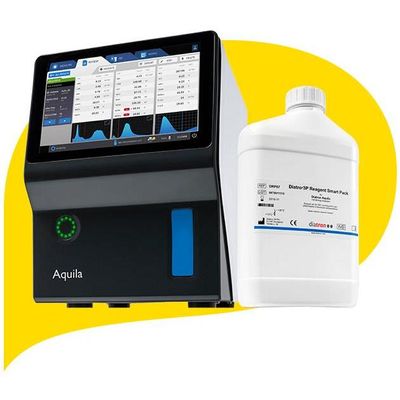

Diatron -Model Aquila -POC Optimized Hematology Analyzer
The Diatron Aquila is an innovative and revolutionary 3-part differential hematology analyzer that can be used in any testing location and application where high quality CBC results are desired. Our latest technology offers the optimal testing solution for both the experienced and inexperienced user and practices which require a high quality hematology analyzer.
The Diatron Aquila is an innovative and revolutionary 3-part differential hematology analyzer
- Portable
- User friendly
- Cost effective
- Fast and Reliable
Diatron has utilized its many years of expertise in developoing and manufacturing hematology analyzers to produce the Diatron Aquila: an innovative and revolutionary instrument that is suitable for many testing scenarios such as satellite laboratories, point of care (e.g. physician offices and clinics) and routine laboratories.
Portable
Lightweight and with optional battery pack a fully portable, small foot print analyzer, applicable for use in all locations.
Fast and reliable
Accurate results with regular and micro-sampling collection tubes with only 20 μl blood required and results in less than 1 minute.
User friendly
Large touch screen with specially designed user interface for nonexperienced operators – Userfriendly and good LIS connections.
Cost effective
Easy, safe and biohazard-free on-board integrated reagent pack and waste, up to 200 measurements per pack with up to 60 days stability on the analyzer allows complete cost control.
- Troughput: 60 tests/hour
- Parameters:
- 22 hematology parameters,
- 3 separate histograms: WBC, LYM, MID,
- GRA, LYM%, MID%, GRA%, RBC, HCT,
- MCV, RDWc, RDWs, HGB, MCH, MCHC,
- PLT, PCT, MPV, PDWc, PDWs, P-LCC,
- P-LCR%
- Technology: Impedance
- Sample collection: Venous or capillary
- Supported sample tubes
- EDTA collection
- tubes and micro-sampling tubes
- Sample volumes
- Sample volume: ~20 μl of whole blood
- Sampling method
- Open and closed tube
- system with automatic sampling port
- Sample profiles
- User selectable
User interface
- Display: Capacitive 10.1?, TFT Touch Screen,
- 1280 x 800 resolution
- Data storage capacity: Up to 10,000 results
- including histograms
- Printer options: Any Windows 8.1
- supported external USB printer
- User interface: Intuitive, logical,
- easy to use GUI
- User assignment options: Various user
- management levels and other cybersecurity
- conformity
- LIS communication: HL7 protocol
- Log file: Displays history of analyzer
- actions/errors
- User languages: English, German, Italian,
- Indonesian
Quality control
- Qc functions : The trend function allows
- to display the selected records from the
- database on Levey-Jennings charts
- Extended QC mode: Secondary
- QC limits for all parameters
- USB Barcode reader: Sample ID, Control
Physical parameters
- Size (Width x Depth x Height): 32 cm x 27 cm x 37 cm incl. reagent pack
- 13? x 11? x 14?
- Weight: ~15kg/33 lbs inc reagent bottle
- Power supply: 24 V DC and 3.75 A
- *Optional Battery capacity: Optional battery allows to measure up to
- 100 samples continuously
Reagents
- Diatro3P Reagent Smart Pack
- Hardware key protected pack
- Up to 800 (4 x 200) measurements/pack
- dependent on usage
Communication interfaces
- 1x LAN
- 4x rear USB ports and 2x side USB ports
- WiFi/4G dongle support
