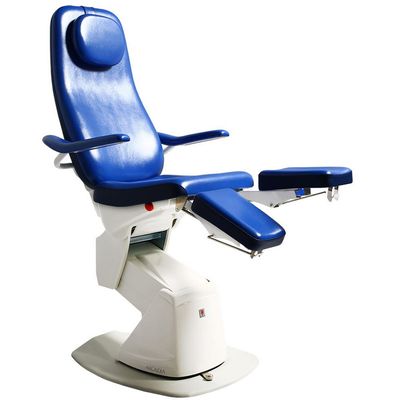

Arcadia - Podiatry Chair
Designed to ensure maximum comfort for both the patient and the podiatrist,ARCADIApodiatry chair has apantograph structurein steel treated against oxidation andhigh-strength casings in ABS + PMMA. The350° rotating steel pantograph structurebased on 260mm diameter ball bearings in Delrin® and thebrake system with progressive effect, give maximum efficiency and operational ergonomics to this podiatry chair.
ARCADIA is confirmed as the top of the range also thanks to the attention to details:the internal insert of backrest and seat is made of steeland thecushionsaremade of polyurethane foam injected in a mold and foam thickness ergonomically differentiated.Ideal for any podiatric clinic, depending on the chosen model it can be equipped with3, 4 or 5 motors.
To support the podiatrist in the daily activity Arcadia podiatry chair is equipped with 3 motorized movements:up/down, trendellenburg and backrest.
ARCADIA podiatric chair is always inambidextrous configuration, to facilitate the manual skills of any podiatris
Class I Medical Device
- Pantograph lifting system.
- 15 mm thick steel anti-tipping base
- 350° rotating structure with brake system with progressive effect
- “SAFETY STOP system” to be activated by the patient and the operator.
- Coaxial armrests that always remain parallel to the seat.
- Upholstery in hypoallergenic and self-extinguishing integral 2 mm PVC available in both mono and bicolor version.
- min. height of seat: 510 mm
- max. height of seat: 890 mm
- Leg-rest angular inclination: 90°
- Backrest inclination: 75° (-15°, -90°)
- -Seat tilt (trendellenbourg): 32°
- Leg-rests max. height: 1360 mm
- Podiatry chair weight: 110 kg
- Rated lift load: 220 kg
