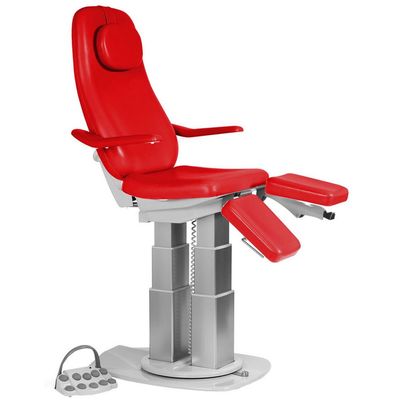

OrionPodiatry Chair

SHARE

Orionis one of a kind podiatry chair with aperfectly vertical lifting movement guaranteed by the double column steel structureandhigh-strength casings in ABS + PMMA. The350° rotating structure, on a 260 mm diameter ball bearing in Delrin® with aprogressive effect braking system, gives maximum efficiency and operational ergonomics to this podiatric chair.

Most popular related searches

Attention has been paid to every last detail: the internal insert of backrest and seat is made of steeland the cushionsare made of polyurethane foam with foam injected in a moldand foam thickness ergonomically differentiated.
Depending on the chosen model it can be equipped with3, 4 or 5 motors to support the podiatrist in the daily activity.

All models of Orion podiatry chair perform 3 motorized movements: up/down, trendellenburg and backrest.
Being always inambidextrous configurationORION is also ideal for left-handed podiatrists.

  • Columns lifting system.
  • 15 mm thick steel anti-tipping base.
  • 350° rotating structure with brake system with progressive effect.
  • “SAFETY STOP system” to be activated by the patient and the operator.
  • Coaxial armrests that always remain parallel to the seat.
  • Upholstery in hypoallergenic and self-extinguishing integral 2 mm PVC available in both mono and bicolor version.

  • min. height of seat: 490 mm
  • max. height of seat: 890 mm
  • leg-rest angular inclination: 90°
  • backrest inclination: 85° (-5°, -90°)
  • seat tilt (trendellenbourg): 30°
  • leg-rests max. height: 1310 mm
  • podiatry chair weight: 120 kg
  • rated lift load: 220 kg
