Delta2000 - Model HPL DeltaWALL - Polystyrene Insulation Panels for Modular Walls
Delta2000 specializes in manufacturing HPL DeltaWALL Polystyrene insulation panels, designed for modular wall systems utilized across various industrial sectors such as pharmaceutical, biomedical, chemical, cosmetic, and food processing, as well as for hospital structures. The polystyrene insulation is notable for its isotropic closed-cell structure, which supports a class E fire reaction and complies with UNI EN 13163 standards, along with CE marking. These panels offer significant benefits, including high insulation power, long-term stability, permeability to water vapor, and resistance to both fire and mold. Mechanically robust and efficient, these panels enhance architectural aesthetics and thermal performance when used in modular wall, floor, and ceiling applications, ensuring structural integrity and energy efficiency.
Polystyrene insulation for HPL modular panels are used for various functions in a multitude of sectors:
Pharmaceutical, Biomedical, Chemical, Cosmetic and Food, without forgetting the structural projects of hospitals.
Polystyrene insulation, is used for modular panels such as wall panels, floors, ceilings and pharmaceutical doors.
The sintered expanded polystyrene panel obtained from a block, with isotropic closed cell with class E reaction to fire, complies with UNI EN 13163 standards with CE marking.
Particularly suitable for applications where good mechanical strength is required.
The benefits of polystyrene insulation for modular panels include:
- High insulation power
- Stability over time
- Water vapour permeability
- Fire resistant
- Mold and bacteria resistant

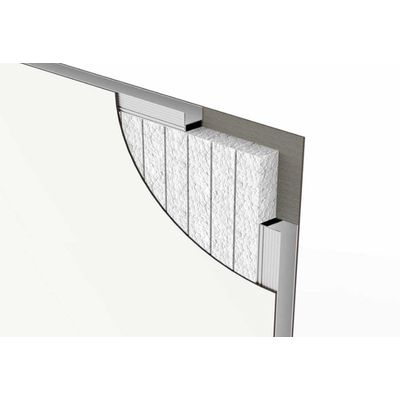

The HPL DeltaWALL™ Polystyrene modular walls are made of:
- Internal frame in extruded raw aluminium, 2 mm thick, insulated with polystyrene
- 4 mm HPL external coating with a total panel thickness of 48 mm
- H-shaped vertical aluminium extrusion bar (2 mm thick), used for mounting the panels, which allows you to obtain a maximum width of 4 mm between the panels
To guarantee the best result in terms of aesthetics, insulation and functionality, the HPL DeltaWALL™ Polistirene, modular walls are fixed with silicone and raw aluminium profiles to the existing floor.
- MODULAR PANEL : TECHNICAL DESCRIPTION AND SPECIFICATIONS
- Reaction to fire : Class B.s1-d0
- Sound insulation (dB) : Rw (C;Ctr)=21(-1;-2) dB
- Weight (Kg / sqm) : 15.30
- Rivestimento esterno : HPL (High Pressure Laminate)
- Realization times : NON STANDARD COLOURS: laminate delivery time is 8 weeks. 4/5 weeks from design approval, STANDARD COLOURS: 4/5 weeks from design approval
- EXTERNAL COVERING : TECHNICAL DESCRIPTION AND SPECIFICATIONS
- Thickness : 4 mm
- Reaction to fire : Class B,s1-d0
- Release of formaldehyde : Class E1
- Abrasion resistance : Revolutions: IP > 150 EN 438-2.10
- Scratch resistance : Strength: Grade > 3 EN 438-2.25
- Impact resistance : Tested with a small diameter ball. Spring force: N>20 EN 438-2.20
- INTERNAL FRAME : Perimeter "C" profile in extruded aluminum sp. 2 mm with double reinforcement rib cut at 45 ° and assembled with aluminum brackets.
- INSULATION : TECHNICAL DESCRIPTION AND SPECIFICATIONS
- Coibente : Corrugated aluminium sheet Density 116 Kg/m³
- Thickness : 40 mm
- Reaction to fire : Class A1 EN 13501-1
- Thermal conductivity λD (W / mk) : NPD EN 12667
- Certifications : ASTM E84-18b, EN 13501-1:2007+A1:2009, EN 438-4
- Standard colors : 405 White Porcelain, 414 Sand, 854 Bleu Silver, ABET 406 SPRING WHITE
- Non-standard colors : 1819 Monviso Grey, 1822 Cavallino Red, 1823 Maquis Green, 1824 Amorgos Blue, 1832 Storm Grey, 412 Ivory, 421 Black, 427 Magenta, 469 African Yellow, 859 Faenza Blue
