Model SOMNO HD eco™ - Portable Diagnostic EEG System

SHARE

4kHz sample rate with 24 Bit resolution, Automatic sensor & electrode recognition, Robust design but still allows bedside bio-calibration, Shortest EEG Electrode with Continuous Impedance Check, Add video to help identify events and artefacts, Live wireless data transmission & backup to device SD card. The SOMNO HD™ eco offers a wide array of diagnostic EEG applications and is especially suited for routine EEG applications. Small and compact in size yet utilising a fully featured 32 channels headbox with 25 referential channels, 7 differential channels and continuous impedance monitoring. Together with our small size, light weight and battery operated main unit, the EEG 32 headbox becomes a full featured portable wireless EEG unit suitable for EEG long-term  monitoring with synchronized video.

Most popular related searches
brain mapping
neurology diagnostic
patient data
long-term EEG monitoring
EEG monitoring
EEG recording
disposable ECG electrode
long-term EEG
wireless EEG
shoulder belt
Combining all the best features from the world renowned SOMNOscreen™ plus and the most innovative technologies from the SOMNO HD™ to create one of the simplest, powerful and robust PSGs in the world. In addition an android app allows you to control multiple SOMNO HD™ Ecos from just one tablet.
Utilising intelligent connect™ (automatic electrode detection) we make montages a thing of the past and combined with the continuous impedance recording, 1Khz sampling rate & 24 Bit signal resolution – ensuring you always have the highest signal quality.
Routine EEG

The package for our Portable EEG 32 includes the following items:

Neurologic Diagnostics Mobile long-term monitoring + routine EEG (stationary) with online data transmission. Max. Recording time: 11 h for online recordings

37 channels: Breathing Effort, Body Position, Movement, Ambient light, Patient marker, 32 channel headbox: 25  x EEG/EOG ref. + 7 diff. + REF + GND, Continuous Impedance
Items included:

  • Basic device SOMNO HD™ eco with integrated BT-transmitter
  • Docking station for data transfer and charging of batteries

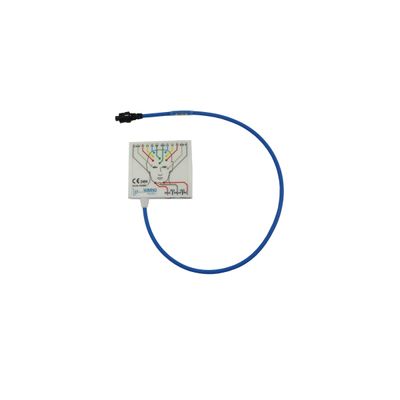

  • PSG headbox with a set of 15 Gold cup electrodes (10 mm with hole, cable length: 76 cm)
  • Reusable inductive effort belt abdomen/thorax size L
  • Shoulder belt
  • 8 GB micro SD card
  • Li-Ion battery
  • User manual
  • Carrying bag
  • Initialisation and analysis software DOMINO (2 licenses)

Starter pack of consumables

  • 2 Connecting cables for ECG
  • Disposable electrodes for ECG and limb-EMG (30 pcs.)
  • Electrode cream (self adhesive)
  • Abrasive skin prepping gel

Routine EEG with Video

The software DOMINO as part of the system offers the possibility to record video signals and signals of external devices synchronously to the data of the SOMNO HD™ / HD ™ ECO basic device.

The Camera with integrated data receiver includes:

  • LAN-Infrared video Camera
  • Integrated IR illumination
  • Integrated microphone and speaker
  • Integrated BT-receiver
  • Incl. wall / ceiling mount
  • Incl. video recording software
  • H.264 Video-Stream
  • Resolution: 1280 x 960 pixels
  • Weight 688 g
  • Dimensions 157 x 127 x 125 mm
  • Power DC 5 V, 2 A, max. 10 W

We have a number of high end video solutions available. To find out more please visit our dedicated VIDEO page. Please click HERE.

In the software the following can be achieved:

  • Synchronous play to physiological data.
  • Selectable speed (step-wise between 0.25 and 100x) with loop option.
Docking station for simplified handling

The docking station is used to charge the SOMNO HDTM eco Li-Ion battery and to install regular, free of charge firmware updates. This means your SOMNO HDTM eco is always up to date.

A virtual docking station also appears on your PC and shows the actual status of the device.

In addition to the telemetric data transfer in real time, the measurement data is stored on an internal memory card and can be transferred to a PC via the docking station at the end of the diagnosis. This system insures no measurements are ever lost.

Options for EEG 32*

Photic Stimulator for advanced neurological diagnostics* – EEG with photostimulation is not allowed at home.

Items included: Connecting cable to PC, Tripod

Software Highlights

Our Domnio software allows for easy to use Montage editor, re-referencing during and after acquisition, spectral analysis of EEG waveforms and Brain mapping (frequency and amplitude).

  • Optional patient data base for efficient organization of patient data and reports
  • EDF data exchange for integration of off-system software
  • HL7 and GDT interface for connection to hospital or practice information systems (cost option)
  • Open recordings and reports (for review) on any PC
  • EEG data analysis: Amplitude, spectral and frequency mapping
  • High resolution brain mapping in 3D, playback with slow motion and rewind for accurate
  • Acoustic playback of EEG signals
  • Easy re-referencing of channels
  • Retrospective view of data during recording
  • Easy marking of events and start-/stop timer function for markers (e.g. HV / post HV)
  • Standard EEG montages pre-installed
