MinXray -Model CMDR-2S-TMIL -Portable Digital Radiography System for Military
The CMDR-2S-TMIL is a comprehensive portable digital radiography system tailored for military use. It features a high-resolution Cesium Imaging Detector paired with a MinXray HF120/60H PowerPlus portable x-ray unit. The system is designed for rapid deployment, setting up in under a minute, and boasts image acquisition in less than 10 seconds. Mounted on a two-wheel stainless steel stand, the tethered digital detector is easily removed from its protective sleeve for use. The unit's rugged construction ensures durability while maintaining a lightweight, compact design, making it effortlessly transportable across various sites. Technical specifications include an x-ray output of 60-14 mA at 40-120 kVDC, a pixel matrix of approximately 7.3 million pixels, a pixel pitch of 143 micrometers, and a limiting resolution of 3.7 line pairs per millimeter. It supports data output via Gigabit Ethernet and operates within a temperature range of 10°C to 35°C, with environmental resistance to high shock and water exposure.

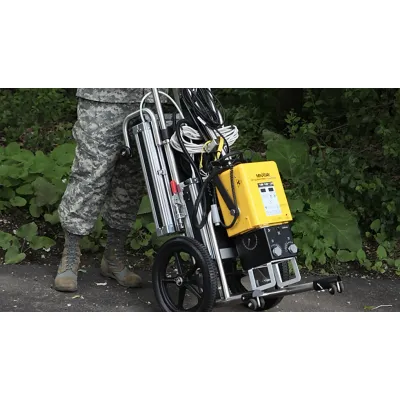

Portability is crucial for military personnel, especially for the medical needs of our servicemen and women. The CMDR-2S-TMIL, a complete digital radiography system, offers superior image resolution for diagnostic imaging. This portable digital radiography system includes a tethered digital detector (DR) and laptop mounted on a two-wheel, stainless steel stand, providing easy and convenient transport of the entire system. The digital detector slips out of its onboard protective enclosure for use. The CMDR-2S-TMIL system is your complete, portable radiography solution wherever duty calls.
The CMDR-2S-TMIL is a complete portable digital radiography system featuring a Cesium Imaging Detector integrated with a MinXray HF120/60H PowerPlus™ portable x-ray unit. The detector slips out of its protective sleeve and the system sets up in less than one minute.
- Rugged construction yet light and compact
- Easily transportable between sites
- Set up in less than 1 minute
- Image acquisition in less than 10 seconds
- Superior resolution
- Comes packaged with a HF100HSTC Military Transport
- System Net Weight: Approximately 149 lb (68kg)
MinXray HF120/60H PowerPlus™
- X-Ray Output: 60-14 mA @ 40-120 kVDC, 0.6-212 mAs
- Input Line Voltage: 100-260 VAC; 50/60 Hz
- Total Filtration with Collimator: 3.2 mm AI Equivalent
- Collimator: Collimare CPL-125-MX01-C LED
14 x 17 Digital Detector
- Receptor Type: Csl TI (direct vapor deposition) + reflective coating
- Pixel Pitch: 143µm
- Pixel Matrix: 2984 x 2448 (approx. 7.3 million pixels)
- Limiting Resolution: 3.7 lp/mm
- Cycle Time: 4 sec preview image, 6 sec erase and ready
- Data Output: Gigabit Ethernet
- Environmental: High-shock tolerance and water resistant
- Temperature Range: Operating: 10° C to 35° C (max) | Storage: -20° C to +70° C
- Humidity: Operating & Storage: 10 to 90%.
- Pressure: Operating: 70-106 kPa; | Storage: 50-106 kPa
- Weight: 6.6 lb (3 kg)
