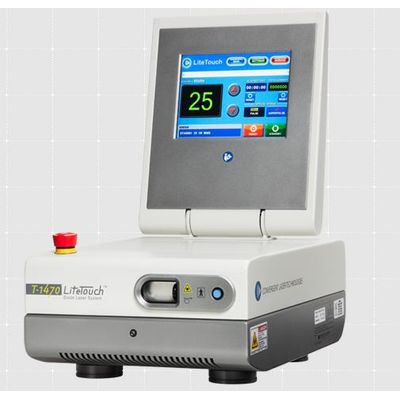

LiteTouch -Model T-1470 -Portable Diode Laser System
Portable diode laser system for Renal & Ureteral Tumors, ENT and other soft tissue applications. The LiteTouch is designed for treating Renal Tumors, Ureteral Tumors, ENT and other soft tissue indications. Similar to the ProTouch, its 1470 nm wavelength is highly absorbed by both water and hemoglobin making it ideal for ablating soft tissue. As the laser energy ablates tissue, it simultaneously seals off the blood vessels to minimize bleeding, which provides a clean and clear operating field of view.
Urology
Excision, vaporization, incision, coagulation, ablation of tissues with excellent hemostasis.
Examples include:
- Vaporization of uretheral tumors
- Release of urethral stricture
- Removal of bladder neck obstruction
- Excision and vaporization of condyloma
- Lesions of external genitalia
Ear, Nose and Throat and Oral Surgery (Otolaryngology)
Hemostasis, incision, excision, ablation, coagulation and vaporization of tissue from the ear, nose, throat and adjacent areas including soft tissue in the oral cavity.
Examples include:
- Removal of benign lesions from the ear, nose and throat, e.g. turbinectomy
- Excision and vaporization of vocal cord nodules &am; polyps, e.g. tonselectomy, uvelaplasty
- Incision and excision of carcinoma in situ, e.g. bronchoscopy
- Ablation and vaporization of hyperkeratosis
- Excision and vaporization of herpes simplex I and II
- Neck Dissection
Pulmonary Surgery
Hemostasis, vaporization, coagulation, incision, excision and ablation of soft tissue in the pulmonary system.
Examples include:
- Tracheobronchial malignancy or stricture
- Benign and malignant pulmonary obstruction
- Endoscopic pulmonary applications
Gynecology
Ablation, excision, incision, coagulation, hemostasis and vaporization of gynechological tissue.
Examples include:
- Endometrial ablation
- Excision or vaporization of condylomata acuminata
- Vaporization of cervical intraepithelial neoplasia
- Cervical conization
- Menorrhagia
- 1470 nm wavelength is the optimum laser wavelength for soft tissues. It has a high water absorption coefficient similar to the holmium wavelength and is readily absorbed by oxyhemoglobin allowing for low-char hemostatic tissue removal.
- Fiber tip protection system allows the surgeon to work in contact mode without damaging the fiber tip. With KTP lasers, the surgeon has to position the fiber tip 2-3 mm from the tissue surface to avoid overheating the fiber tip.
- Top-hat waveform delivers 20% more effective power compared to typical Gaussian waveform lasers. At 25 W setting in contact mode, the T-1470 LiteTouch removes tissue twice as fast as an equivalent-powered CO2 laser.
- Convergent 200 micron and 400 micron fiber delivery systems for the T-1470 LiteTouch can deliver high peak power to ablate all types of soft tissues.
- Laser Type : Solid-state diode
- Wavelength : 1470 nm
- Modes : Continuous Wave, Pulse, SuperPulse
- Maximum Average Power : 25 W
- Visible Aiming Beam : 635 nm (red), 5 mW max, user adjustable
- Cooling System : Thermoelectric (no water required)
- Operating Temperature : 55-85 °F (13-30 °C)
- Electrical Requirements : 115/230 VAC, 15 A, single-phase
- Dimensions : 12"W (30.5 cm) x 18.5"L (47.0 cm), 9"H (22.9 cm)
- Weight : 30 lbs (14 kg)
- Safety Compliance : UL/CSA 2601, EN 60601-1, IEC 60601-2-22, IEC 60825-1, EN 60601-1-2 (EMC), IEC 60601-1 3rd Edition
- Warranty : One year, parts and labor
