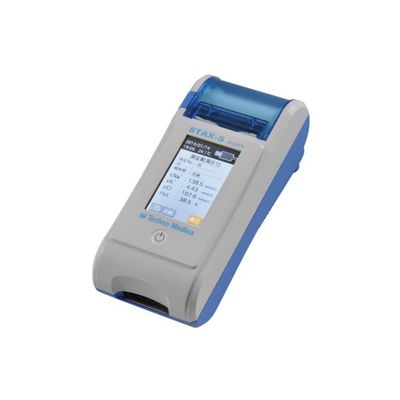

Techno Medica -Model STAX-5 inspire -Portable Electrolyte Blood Analyzer
Full electrolyte parameters by finger drop of 10µL blood. The world’s first portable magnesium analyzer.
Most popular related searches
electrolyte analyzer
electrolyte blood analyzer
whole blood
blood plasma
spinal fluid
blood analyzer
blood serum
urinal
spinal
dialysate
- Quick test result within 60 – 180seconds.
- On-board printer.
- Item : Specification/Feature
- Sample Type : Whole blood, Plasma, Serum, Dialysate, Urine, Spinal fluid, control (ISE-CRS)
- Sample Volume : 10μL by finger drop blood or from syringe
- Test Available (Measured) :
- Sensor Card E1：cNa⁺、cK⁺、cCl⁻、Hct（AG）
- Sensor Card E2：pH、pCO₂（cHCO₃⁻）
- Sensor Card E3：cCa²⁺、cMg²⁺、pH（Entered value：<Alb>）
- Analysis Time :
- Sensor Card E1：60s
- Sensor Card E2：180s
- Sensor Card E3：180s
- Principle : Ion Selective Method (Hct: Electrical Conductivity Method)
- Calibration : Automated 1point calibration before analysis
- Measurement Range :
- pH：6.000〜8.000
- pCO₂：10.0〜200.0 torr
- cNa⁺：100.0〜180.0 mmol/L
- cK⁺：1.00〜10.00 mmol/L
- cCl⁻：50.0〜200.0 mmol/L
- cMg²⁺：0.25〜2.50 mmol/L
- cCa²⁺：0.50〜5.00 mmol/L
- Hct：15.0〜65.0%
- Display : 3.5inch color touch panel display
- Printer : Built-in
- Interface : USB
- Other functions :
- Data capacity 3,000 results
- Data research / display / re-printing
- Between-lot data correlation by RFID tag on Sensor Card
- Operating temperature environment
- Device: 10-35 degree Celsius
- Sensor Card: 15-30 degree Celsius
- Sensor card storage condition and shelf life :
- Sensor Card E1/E2
- 1 year refrigerated
- 2 months in room temperature
- Sensor Card E3
- 6 months refrigerated
- 2 weeks in room temperature
- Power : AC 100 – 240V, 50/60Hz AA Battery
- Dimension :
- Body: 95(W) - 215(D) – 86.5(H) mm
- Sensor card: 45(W) - 69(D) – 7.0(H) mm
- Weight : 0.85 KG excluding battery
