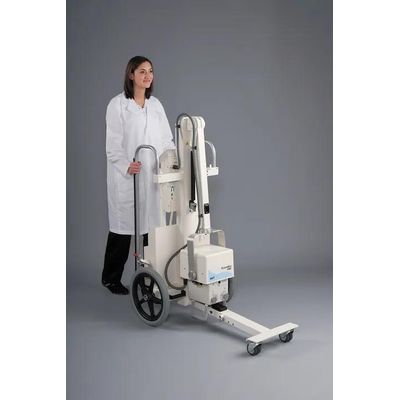

PowerMax - Model 1260 - Portable Medical X-ray System
FromSource-Ray Inc
The PowerMax-1260 Portable X-ray System combines lightweight maneuverability with maximum power, making it suitable for various applications. In addition, with high reliability and low maintenance, the state-of-the-art system offers an easy upgrade path for clinical sites transitioning to digital imaging.
Most popular related searches
medical X-ray system
X-ray system
medical X-ray
mobile medical X-ray
X-ray tube
soft tissue
nursing home
clinical site
medical center
hospital medical
- Our most powerful portable x-ray system
- Initially designed for the military
- Compact, high-power, general-purpose
- Universal input - power factor correction
- Radiographic Applications: Used in hospitals, medical centers, clinics, sport complexes, nursing homes, home health care, correctional facilities & military applications.
- Generator Type: High frequency Resonant Inverter Microprocessor controlled.
- kVp Range: Extremity Range – Adjustable in 1kVp steps.
- mA Range: 15 – 60 Selectable. Constant mA – Independent of kV or Time.
- mAs Range: Optimum Range – Provides quality soft tissue & bone resolution.
- Exposure Time: 96 steps – Provides accurate technique settings.
- X-ray Tube
- Stationary anode, 15° Target, 1.2 fs 30,000 Heat Unit Storage
- 1.2 fs 30,000 Heat Unit Storage. Provides superior image quality & heat storage.
- Collimator: 200° Rotation – High output LED lamp, Laser Indicators.
- Exposure Switch: 2 Position, Prep / X-ray, 15` Cable.
- Mechanical Stand: Welded Aluminum construction.
