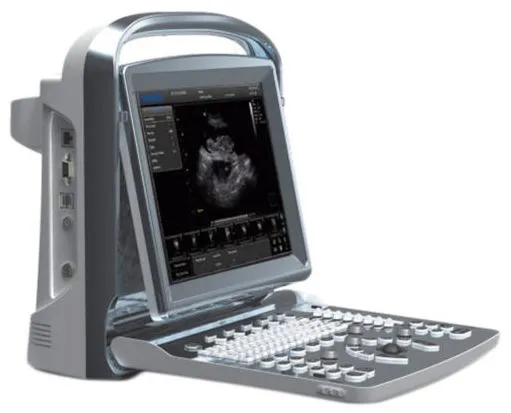

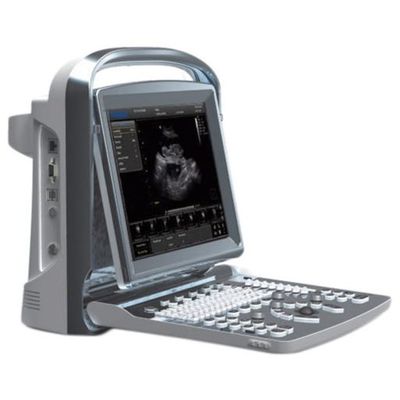

Chison -Model ECO1 Vet -Portable Ultrasound
Chison ECO1 Vet portable ultrasound is an excellent cost-effective choice for a diagnostic tool. Offers a streamlined workflow, and a slim light design.
Most popular related searches
- Reliable
- LED High-Resolution Screen
- 30 Degree Rotatable Monitor
- One Key to Full Screen Mode
- Compound Imaging, One Step Image Saving, Friendly Easy Review of Images
- 4G Memory Standard
- Multiple Beam-forming Technology
- Enhances Fram Rate
- Improves Image Resolution
- Supports Video Printer and PC Printer
- Patient information management, images record, and exam report
- Full screen documentation, Hospital name, Patient name, Date/time
- Annotation database available, Pre-saved phrases can be recalled
- Specifications
- Applications for large animal: reproduction, tendon
- Applications for small animal: abdomen, small parts, basic cardiology
- Display Modes: B, B/B, 4B, M, B/M
- Gray Scale: 256 levels
- Scanning Depth: 240mm Max (depending on probe)
- Probe frequency: 2.5MHz - 11 MHz (depending on probe)
- Probe connectors: one
- Cine loop: 256 frames
- Zoom: 4 steps
- AC 240V-100V, 50Hz- 60Hz
- Software Packages (depending on probe choice)
- Canine: GS,CRL, HD, BD
- Feline: HD, BD
- Equine: GS
- Bovine: BPD, CRL, Trunk Diameter
- Ovine: BPD, CRL, Trunk Diameter
- General Measurements
- B mode: distance, circumference, area, volume, ratio, angle, % stenosis, histogram, profile, etc.
- M mode: distance, time, velocity, heart rate, etc.
- Standard Configuration includes
- Main unit, One Probe, 1probe connector, 3 USB ports, VGA port, Video port, LAN port
- Optional
- 2 probe connectors, anti-water keyboard cover, carrying bag
