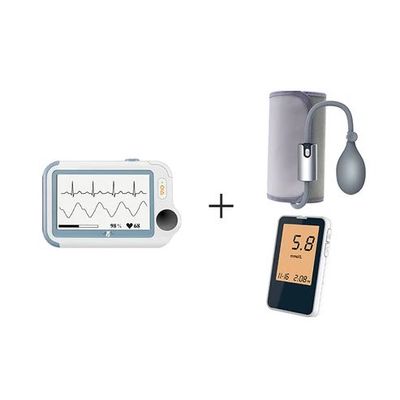

Model Checkme Suit - Portable Vital Signs Monitor Suit
Checkme Suit is a portable medical health kit that integrates Checkme Pro, blood glucose meter and NIBP. Integrates the detection of ECG, blood oxygen saturation, blood glucose, body temperature and many other body indicators.
Most popular related searches
vital signs monitor
vital signs monitoring
blood glucose meter
blood glucose
blood oxygen saturation
heart rate
glucose meter
vital signs data
blood pressure monitoring
oxygen saturation
ECG Recorder
- Support cable and cable-free operation
- 500Hz sampling rate and wide bandwidth
- 30/60s of full disclosure waveform can be replayed
- Professional ECG algorithm is able to provide heart rate & QRS duration, ST segment, QT/QTC interval and rhythm analysis
- QT/QTC can help to manage drugs which may induce QT prolongation
ECG Holter
- Continuously record ECG for 24 hours
- Check report and ECG waveform on PC
- The report includes heart rate, rhythm and HRV (heart rate variability)
- The report can be printed or saved as PDF
SpO2 Monitor
- Support both cable and cable-free operation
- External soft- cover SpO2 sensor is available
- External disposable SpO2 sensor is available
- Oxygen saturation, pulse rate & pulse strength are available
Compatible with Blood Pressure Monitor (Model: AirBP)
- Work with AirBP via bluetooth
- Manage all vital signs data together
Compatible with Blood Glucose Meter (Model: TD-4257B/TD-4286A/TNG Voice)
- Support to display and store the measurement results which is synced from the blood glucose meter
- Share blood glucose data
ECG Measurement
- Lead type: Integrated ECG electrodes, External ECG cable and electrodes
- Lead set: Lead I, lead II
- Measurement mode: Episode, Continuous
SpO2 Measurement
- SpO2 range: 70% to 100
- SpO2 accuracy : 80-100%:±2%, 70-79%:±3%
- PR range: 30 to 250 bpm
- PR accuracy: ±2 bpm or ±2%
- PI range: 0.5-15
Temperature Measurement
- Technique: Infrared body temperature
- Measurement range: 34.0 to 42.2 °C (94.0 to 108.0 °F)
- Measurement accuracy: ±0.2°C or ±0.4°F
Blood Pressure Measurement
- Technology: Oscillometric method
- Measurement range: 0 - 300mmHg
- Measurement accuracy: ±3mmHg
Blood Glucose Measurement
- Measurement range: 20 to 600mg/dL (1.1 to 33.3 mmol/L)
