ESI -Model 30T -Powder manual tablet press

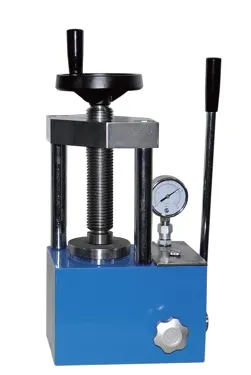

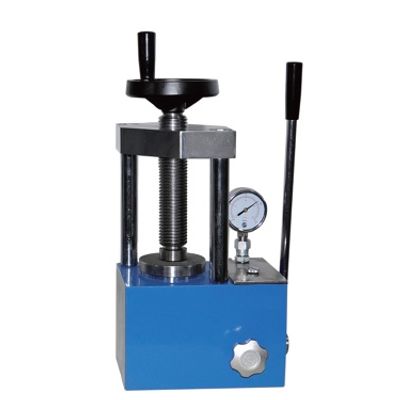

Powder manual tablet press ESI-30T Tablet press ESI-30T Product Description: The manual tablet press produced by Infx Scientific Instruments is mainly used for pressing samples within 30mm-100mm diameter. The mechanical lever principle of the die supporting the tablet press of various sizes is practical and convenient. The main machine is all made of stainless steel and the shell is environmentally friendly. The pressure display can be displayed directly on the vacuum gauge. It is one of the indispensable equipment for powder treatment in laboratory research and development and production enterprises.

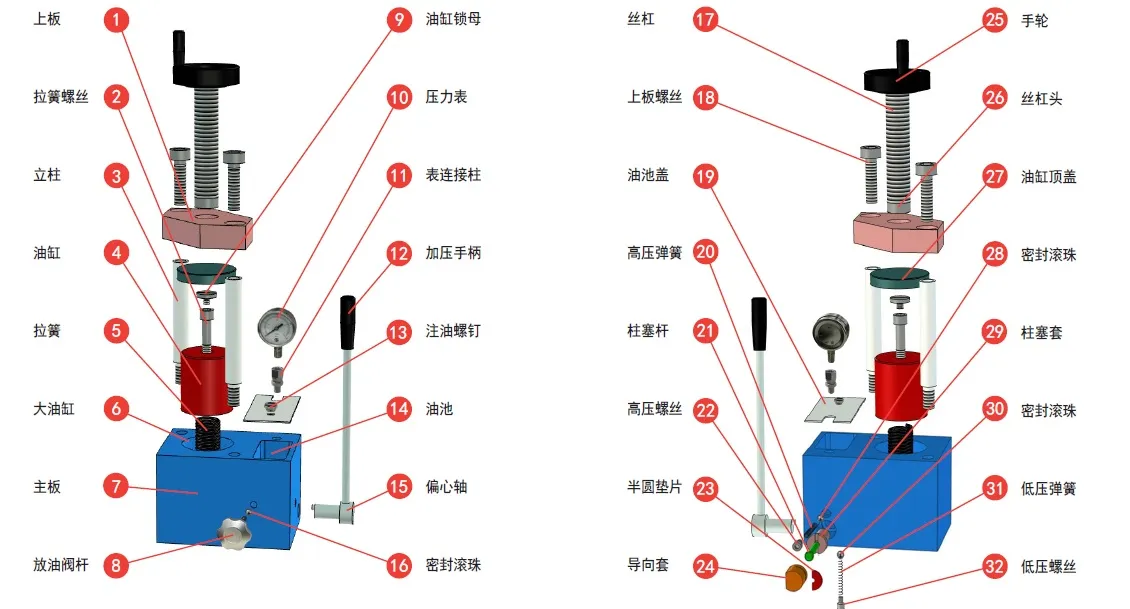

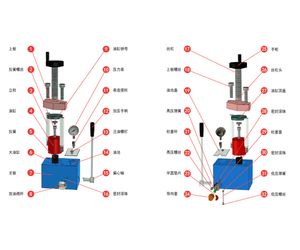

The tablet press is mainly composed of transmission parts, turntable parts, press wheel frame parts, track parts, lubrication parts and enclosures. The general structure of the turntable is 3 layers, the upper die hole is loaded into the upper punch rod, the middle die is installed in the middle die, and the lower die hole is loaded with the punch rod.
Mainly used in some laboratories or in the early production of powder pressing tablet or pill loading process, such as the production of button batteries, electronic components, lithium, metallurgical powder, ceramics, medicine and many other fields, whether laboratory or production, the application of the tablet machine is very wide.

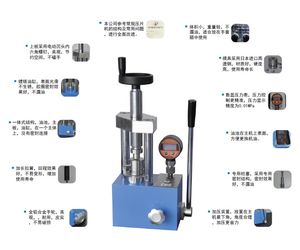

> The tablet press is small in size, light in weight, does not leak oil, easy to handle and can be used in the glove box.
> Integrated motherboard structure, oil pool, motherboard, oil cylinder, on one body, no sealing connection, reduce oil leakage phenomenon.
> Can be equipped with digital pressure gauge, pressure control is accurate, pressure display accuracy is 0.01MPa.

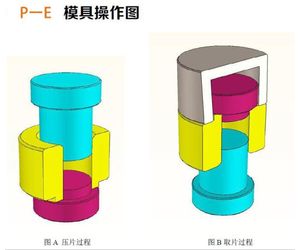

The mould operation diagram of powder tablet press is as follows：
Picture A Tablet pressing process
Picture B Taking process
