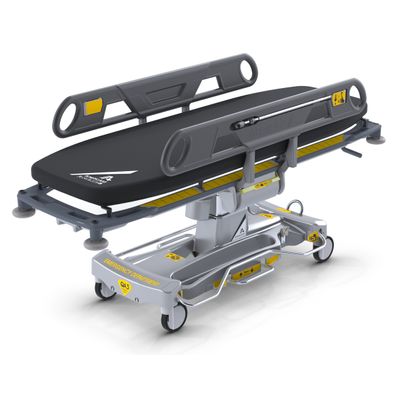

QA3 DRIVE -Model 21114 -Powered Patient Stretcher with KneeFlex
The complete answer for moving and positioning patients as easily as possible; Reduce your manual handling liabilities further with the compact, light weight and supremely manoeuvrable QA3™ DRIVE Powered – the complete solution for patient transport. Ideal for patient transport, examination and intubation in theatre and clinical areas, the QA3™ is robust and has maximum patient comfort built in with its exceptional low height and K8 Pressure care mattress. Featuring inbuilt motorised drive – operated by innovative touch-sensitive pushing handles: controlled, effortless travel up to gradients of 10° combined with electrically powered positioning – raise or lower the whole trolley platform, the backrest or raise the middle section to place the trolley into the KneeFlex position – all at the touch of a button.
Transport - Treatment - Recovery
Safe - Effective - Proven
- New inbuilt motorised drive – works with 5th wheel steering to offer superb manoeuvrability and control with effortless travel up to graduates of 10.
- New pushing handles – totally innovative touch sensitive design to activate inbuilt motorised drive and move trolley forward or back.
- New electrically powered backlift – unique design, precision controlled, for enhanced user and patient comfort.
- New electrically powered raise and lower mechanism – exceptional low height capability
- Vertically operated cot sides – store away under mattress giving a virtually zero transfer gap. Spring counterbalancing allows effortless ease of operation
- Fixed transfusion pole – innovative quick release safety locking mechanism, integrates into either head or foot end of cot sides for easy access and storage.
- Trendelenburg tilt – extremely smooth and controlled mechanism, allows rapid Trendelenburg to be achieved even when trolley is an its lowest height.
- Ergonomically positioned pushing handle
- K8 pressure care mattress – body mould foam, anti bacterial and latex free
Min Height: 475mm (exc. mattress)
Max Height: 775mm (exc. mattress)
Dimensions: L2150 x W805mm
Weight: 141kg
Maximum patient weight: 320kg
We stock a range of build options to tailor to your clinical needs including foot-end pushing handles, oxygen cylinder brackets, x-ray tray guides, department I.D and more.
Specialist Bariatric options with an extended patient platform (800mm) are available on all QA3™ models.
