MEDAP TWISTA -Model SP 1070 -Powerful Surgical Aspirator for the Operating Room
The MEDAP TWISTA SP 1070 is a particularly powerful surgical aspirator specially designed for reliable continuous operation in the operating room. Large amounts of septic fluid, blood and serous fluids, including the particles therein, can thus be suctioned quickly, quietly, and over a long period of time.
- Operating room / anesthesiology
- Outpatient surgery center
Suction capacity
50 Hz: 58 ± 6 l/min
60 Hz: 68 ± 7 l/min
Max. vacuum
–90 kPa
–900 mbar
Vacuum control range
0 to –1000 mbar
Operating mode
Continuous operation
Voltage
230 V~, 50/60 Hz
Special voltage
127 V~, 60 Hz
Dimensions (H x W x D)
1000 x 560 x 500 mm
Weight
approx. 26 kg
Noise level
53 dB(A)
Mobility
mobile
Secretion canister
4 x 3 l or 3 x 5 l
Depending on the existing oversuction protection in the septic fluid jar, the surgical aspirator can be configured without separate overflow protection or with modular oversuction protection according to individual user needs.
In addition to the oversuction protection system, the MEDAP TWISTA SP 1070 has a high-performance bacterial filter installed on the air outlet and thus a second, highly effective means of contamination protection.

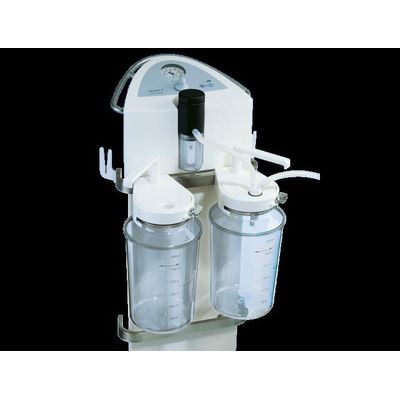

The two equipment rails at the front provide space for up to four septic fluid jars. Different versions can be attached or replaced quickly and safely.
The vacuum gauge has a diameter of 63 mm and especially large, easy-to-read numbers.
Extremely fast vacuum build-up
through the use of a special rotary vane pump
High level of protection against oversuction and contamination
due to the modular overflow protection and additional bacterial filter installed on the air outlet
Noticeably quiet
through innovative noise insulation
