Artivion - Model Chord-X - Pre-Measured Loops

The Chord-X Chordal Sizer measures and indicates the required Chord-X prosthesis size needed. The Chord-X Chordal Sizer corresponds with a Chord-X Pre-Measured Loops and Adjustable Suture System using a color-coded sizing system. The Sizer also provides two hooks for loop creation and knot-tying.

Compared to artificial chords made by the surgeon during the procedure, Chord-X Mitral Chordal Replacement Products are designed to save time, allow reproducible results, and simplify procedures.

Challenge: "Intraoperative creation of chordal loops is tedious and adds to operative time..."1

Solution: Chord-X - designed to save time, allow reproducible results, & simplify procedures*

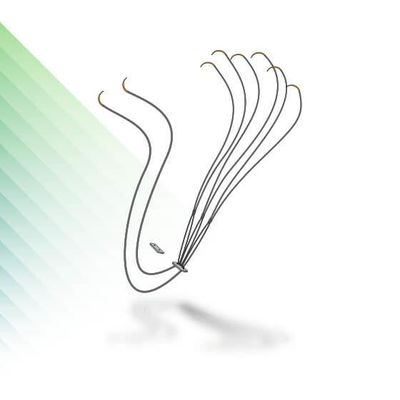

• 3 x independent Chord-X Pre-Measured Loop lengths available in 12, 16, 20, and 24mm
• 2-0 USP ePTFE suture (diameter similar to GORE-TEX^® CV-4)
• 1 x double armed papillary suture with a 3x7x1.85mm PTFE pledget
• 1 x independent 3x7x1.85mm PTFE pledget
• 18mm tapered point needles

• 3 x independent double armed sutures (no loops or pre-tied knots)
• 2-0 USP ePTFE suture (diameter similar to GORE-TEX^® CV-4)
• 1 x double armed papillary suture with a 3x7x1.85mm PTFE pledget
• 1 x independent 3x7x1.85mm PTFE pledget
• 18mm tapered point needles

• Color coded scale (Fig. 1) corresponds to Chord-X Pre-Measured Loops and Adjustable Suture System (Fig. 2)
• Provides fast and accurate sizing
• Rotatable sizing instrument for enhanced visualization
