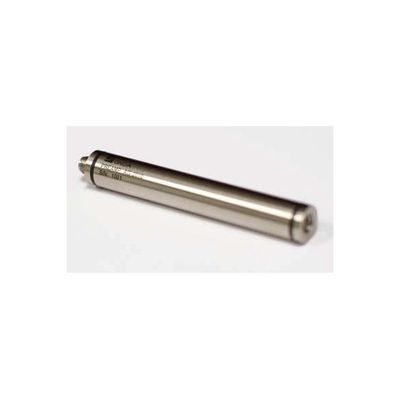

Onda - Model AG-2010 - Preamplifier for Medical Ultrasound Hydrophone
FromOnda Corporation

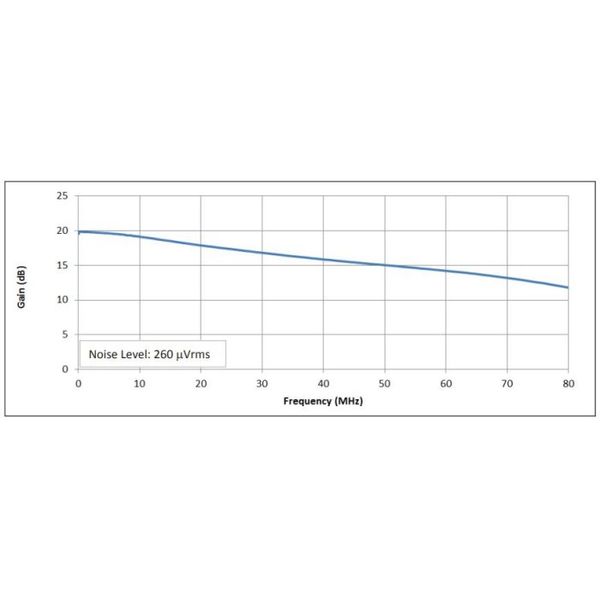

The AG-2010 preamplifier offers a similar mix of performance and features as the AH2010 preamplifier, except that the gain is designed to compensate for frequency variation observed in the HGL-0200 and HGL-0085 hydrophones between 20 and 40 MHz. The combined solution enables the flattest response with a sensitivity that varies less than +/- 3 dB from 0.25 to 40 MHz, which is desirable for accurate measurement of typical pulsed diagnostic ultrasound systems.
Most popular related searches
ultrasound diagnostic system
medical ultrasound hydrophone
medical ultrasound
ultrasound diagnostic
ultrasound system
- Designed to electronically match the HGL-0200 and HGL-0085
- Flat frequency response when combined with the HGL
- Low noise for > 78 dB dynamic range
- Fully submersible
- Only one cable in the tank
- Waterproof mating to Onda hydrophones
- Overload protection
- Voltage Gain: 20 dB
- Bandwidth: 50 kHz - 60 MHz
- Input Impedance: 1 M? in parallel with 7 pF
- Output Impedance: 50 ?
- Max Output into 50 ? : 4 Vpp below 50 MHz, 1 Vpp above 50 MHz
- Power Consumption (max): 2 W
- A Precision Gain and Input Capacitance calibration certificate is provided with each device.
Specifications are subject to change without notice.
