SpineVision
SpineVision - Model Plus - Premium Pedicle Anchorage System
FromSpineVision

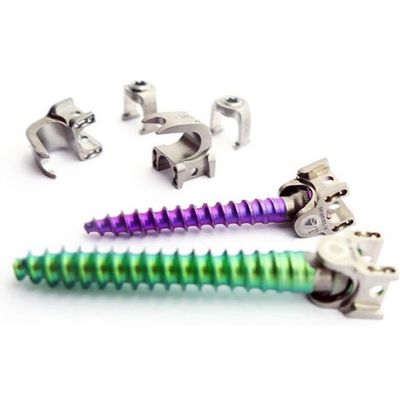

The PLUS is a premium pedicle anchorage system specially designed for the treatment of all types of deformity. Thanks to the PLUS innovative clip closure system with pre-loaded setscrews, it provides surgeons a user-friendly experience in scoliosis reduction and correction maneuvers.
Most popular related searches
medical device manufacturer
patient anatomy
lumbar fixation
bone screw
medical device
bone plate screw
implant
anatomy
surgery
scoliosis
Great freedom and controls in correction maneuvers
- 20° sagittal mobility of the rod even with monoaxial screws when clip is first positioned
- Direct control of the vertebra
- Allows all types of correction maneuvers, from in situ bending to DVD
Safe and ergonomic instrumentation
- Strong rod reduction and closure in one fluid movement
- Audible click to confirm good clip positioning
- No cross threading thanks to preloaded setscrew
Low profile and user focused implants
- 50° sagittal & 180° lateral axiality for greater freedom
- 12 references of hooks : pedicle, lamina & offset
- Color coded screws for quick identification
Solutions for complex constructs
- Iliac rods and screws
- Sacral plates and bone screws
- Fixed or multiaxial transverse connectors
Large array of sizes to perfectly fit patient anatomy
- Screw diameters from 4.5mm to 8.5mm
- Length from 20 to 90 mm (depending on screw’s diameter)
- 6mm diameter rods, in Titanium Ta6v and cobalt-chrome alloy
CE marking : YES
FDA clearance: YES
Plus ® is a class IIb medical device, manufactured by SPINEVISION SAS – France. Plus and SPINEVISION are registered trademarks of SPINEVISION or one of its subsidiaries.
See package insert for labeling information.
