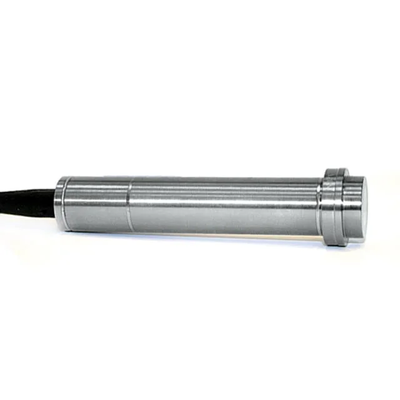

HF Jensen - Model PTI - Pressure Transmitter
FromHF Jensen A/S
To install HF Jensen’s pressure transmitter, you will have to fix it in the HFJ adapter. rmance and lifetime durability. You can trust our pressure transmitters for high precision, and best outcomes in harsh environments. The pressure range varies from 5 to 1000 bar gauge and is known for its swift response time (6ms). While the temperature range varies from – 25o C to +85o C.
Most popular related searches
pressure transmitter
pump control system
strain gauge
leak detection system
process safety
pressure monitoring
pump controller
process monitoring
process safety system
process control system
- Principle: Strain gauge
- Range: 5-1000 bar
- Overpressure: 400 %
- Material: Titanium grade 5
- Non-linearity and hysteresis: < ±0.5 %
- Output signal: 4-20 mA, 2-wire
- Temperature range: -25 °C to +85 °C
- Supply voltage: 12-30 VDC
- Diaphragm diameter: ø19 mm
- Reliable data source in industrial operations for flawless process control and enhanced product quality.
- Hydraulic power units
- Automotive Industry
- Oil and Gas Applications
- Medical Equipment
- Industrial processes in food, chemical, and medicinal industries
- Pressure measurement and regulation
- Process monitoring
- Measuring tank fluid levels
- Calculating liquid flows
- Ensuring process safety
- Pump control systems
- Leakage detection
- Applications in food, chemical and pharmaceutical industries
- High corrosion resistance (titanium grade 5)
- Diaphragm machined from titanium rod
- Surface roughness (diaphragm) < 0.4 µm Ra
- High overpressure 400 %
